Champion 4-axis Racing Experience
A focused commercial racing experience designed to bring the feel of the track into an entertainment venue.
Champion 4-axis cockpit01 / 08
Commercial racing attraction

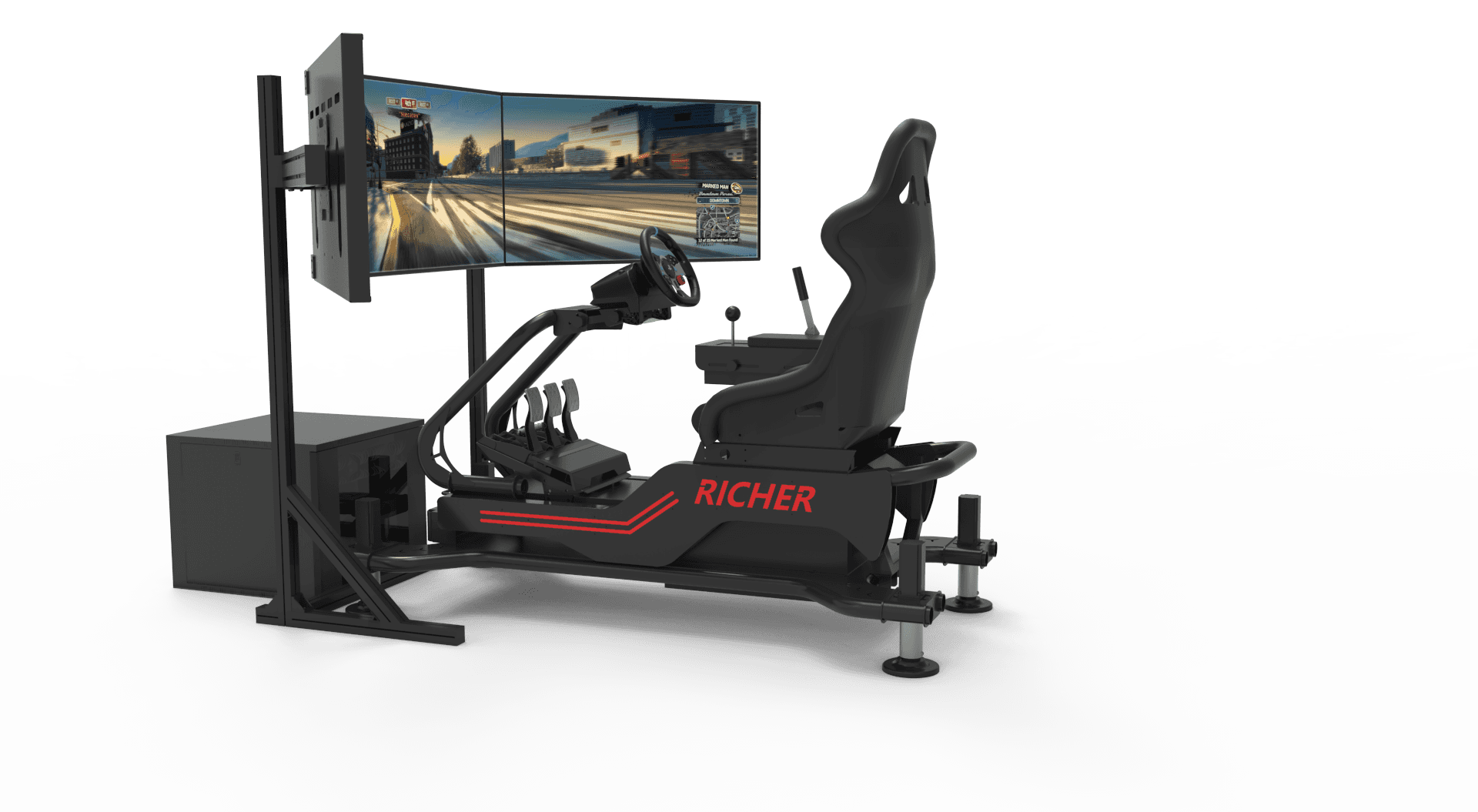

Champion 4-axis
Motion Racing Simulator

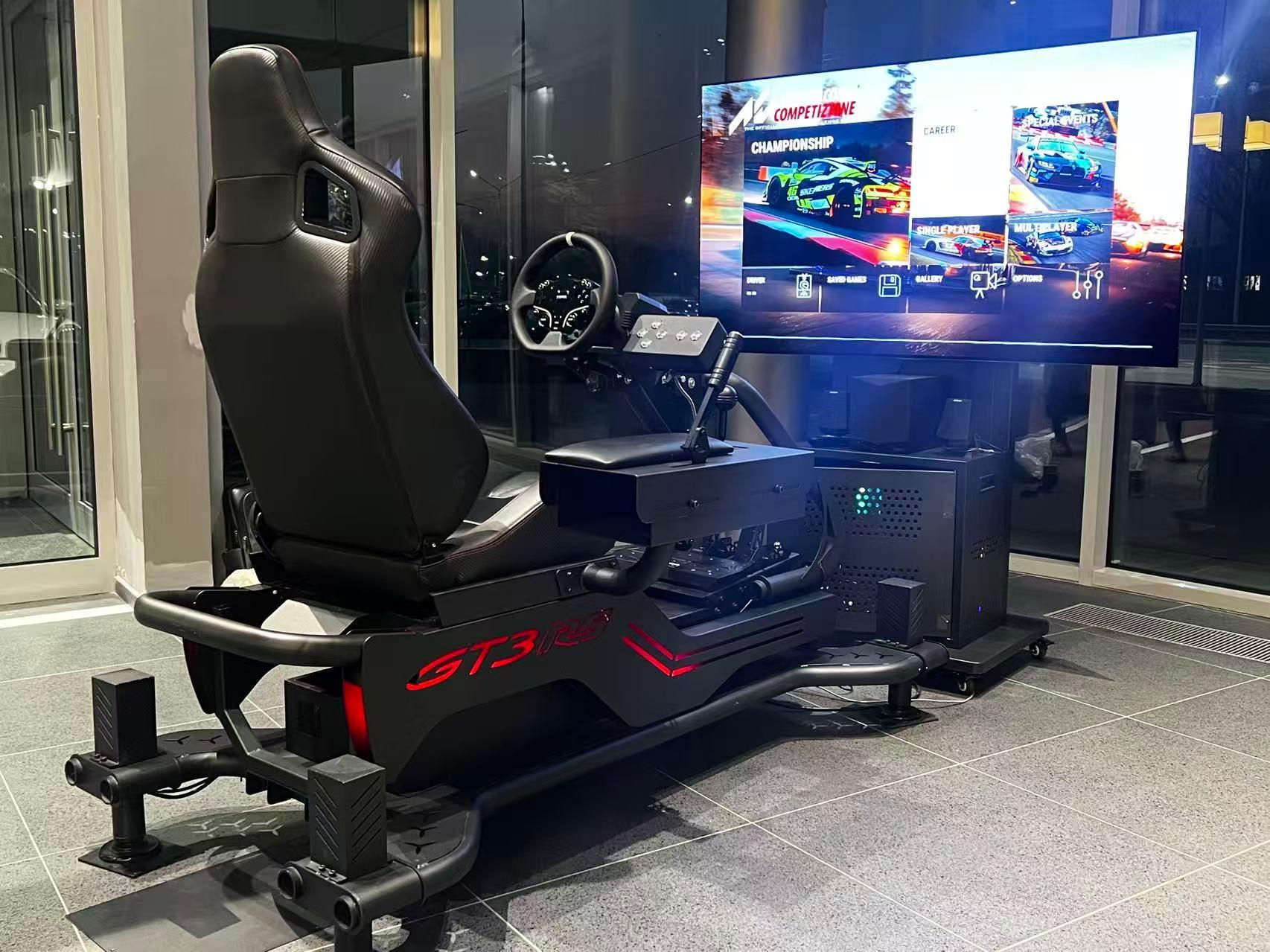

A commercial Champion 4-axis racing cockpit that pairs an immersive driving experience with a dedicated motion platform. Configure a single standout attraction or create a multiplayer racing zone for your venue.
8
Players online
4 / 3
Cylinders / DOF
400 mm
Cylinder stroke
- SKU
- WH-CHAMPION-4AXIS-SIM
- Category
- Arcade Racing Simulators
- Core experience
- Sim racing with motion feedback
- Optional extension
- Compatible flight-game controls
Choosing between motion formats?
Compare this Champion 4-axis simulator with the six-axis option, or explore the full racing simulator range.
Precision Motion Platform
A dedicated racing motion platform adds physical feedback to acceleration, braking and cornering moments.
Multiplayer Racing
Build a social, competitive experience for friends, groups and racing-focused venues.
Optional Flight Mode
A compatible Logitech G X56 HOTAS joystick can extend the attraction with flight-game content.
Engineering detail story
Making commercial sim racing
more efficient and professional.
We build professional racing simulators with high-precision motion control systems.
Steering and Driving Controls
Steering feedback and manual shifting form the direct driving-control experience.

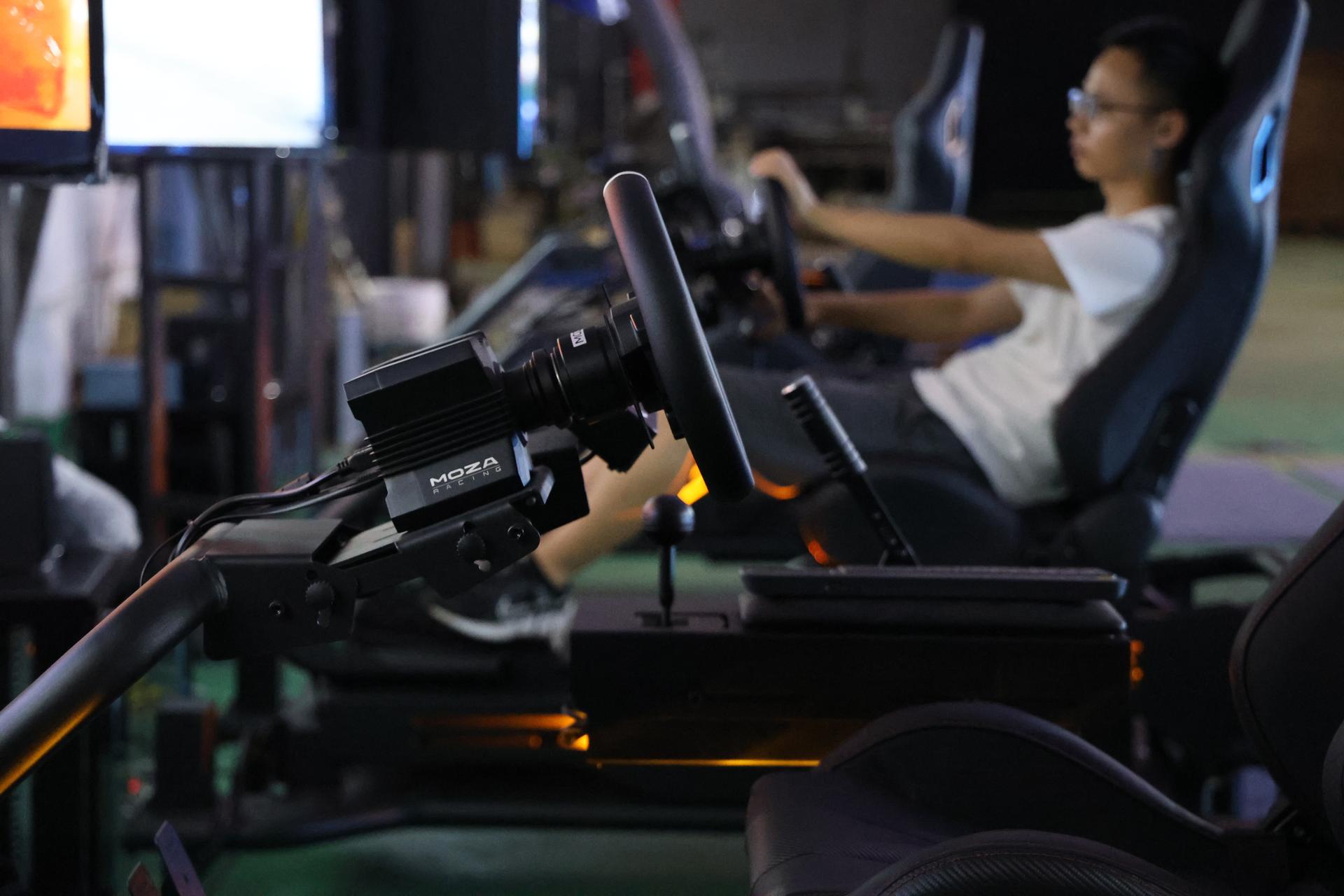

DETAIL 01
MOZA R5 Direct Drive Steering Wheels
5.5 Nm of torque from direct-drive power, bundled with aviation-grade aluminum, high-quality leather and high-strength steel for rock-solid durability. With MOZA's onboard temperature monitoring, even endurance racers can relax knowing that the R5 DD wheelbase will provide reliable performance.
Champion 4-axis / engineering detail

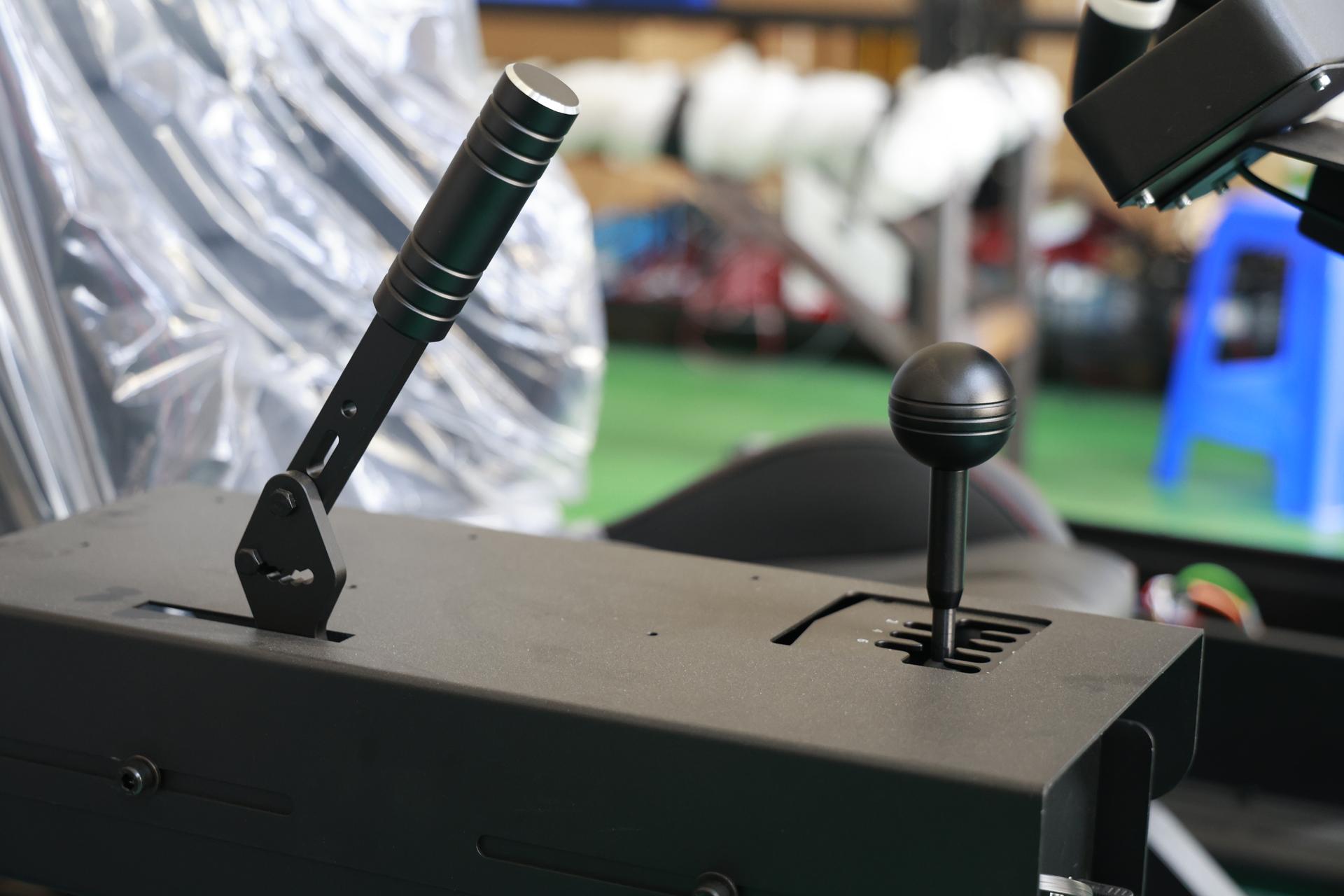

DETAIL 03
The MOZA HGP Shifter
Features seven forward gears and one reverse gear, meeting the needs of multiple simulation scenarios. When rallying or drifting, you want full control. The MOZA HBP Handbrake is highly adjustable and equipped with a 16-bit Hall-effect sensor.
Champion 4-axis / engineering detail
Race Modes and Multiplayer Play
Simple game selection, configurable race conditions and multi-player competition.

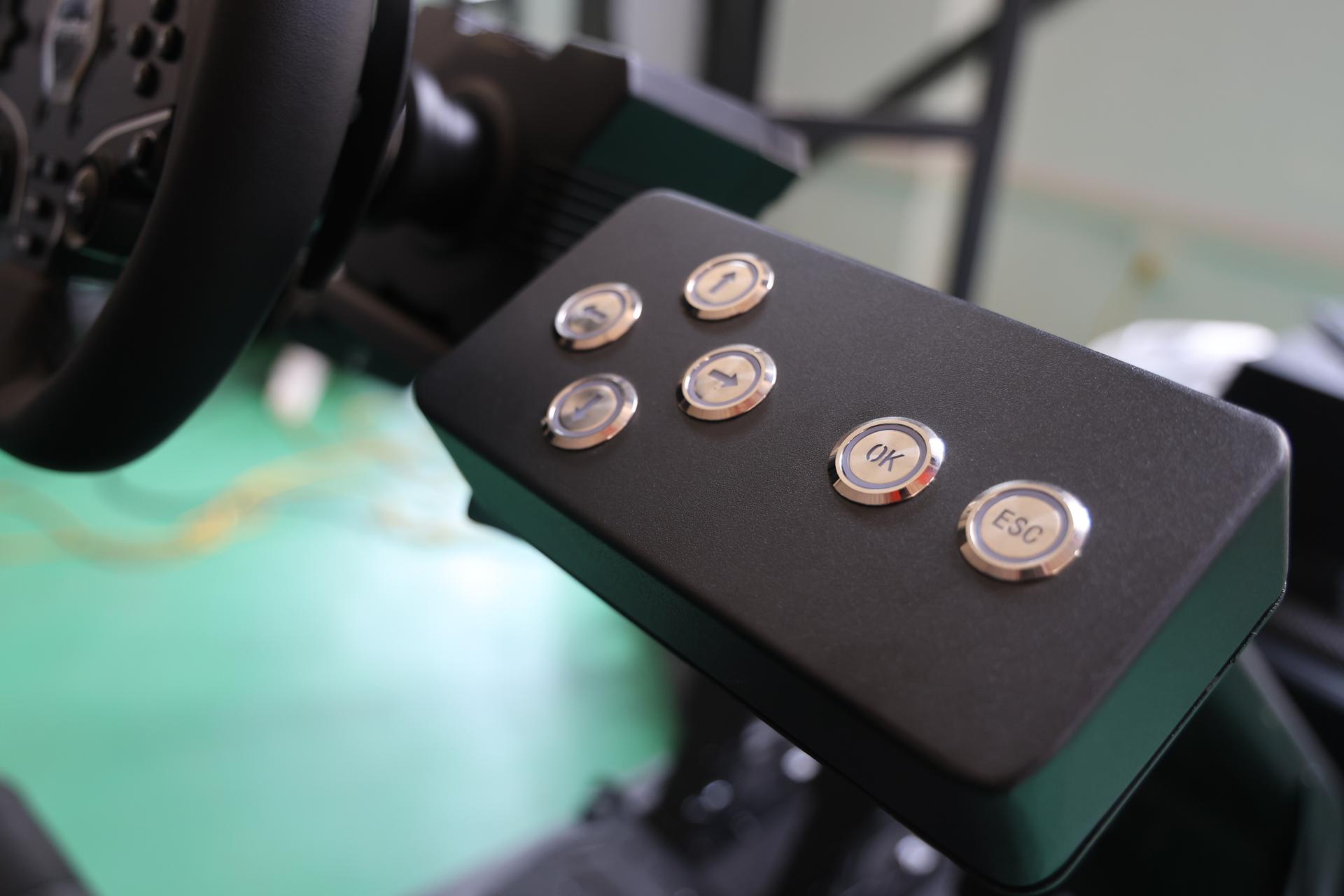

DETAIL 02
Easy Game Selection
We designed and installed a physical button panel so players can easily select games and enter or exit each session. Built for commercial operation in arcades, amusement parks and racing clubs, it improves operating efficiency and helps venues increase revenue.
Champion 4-axis / engineering detail

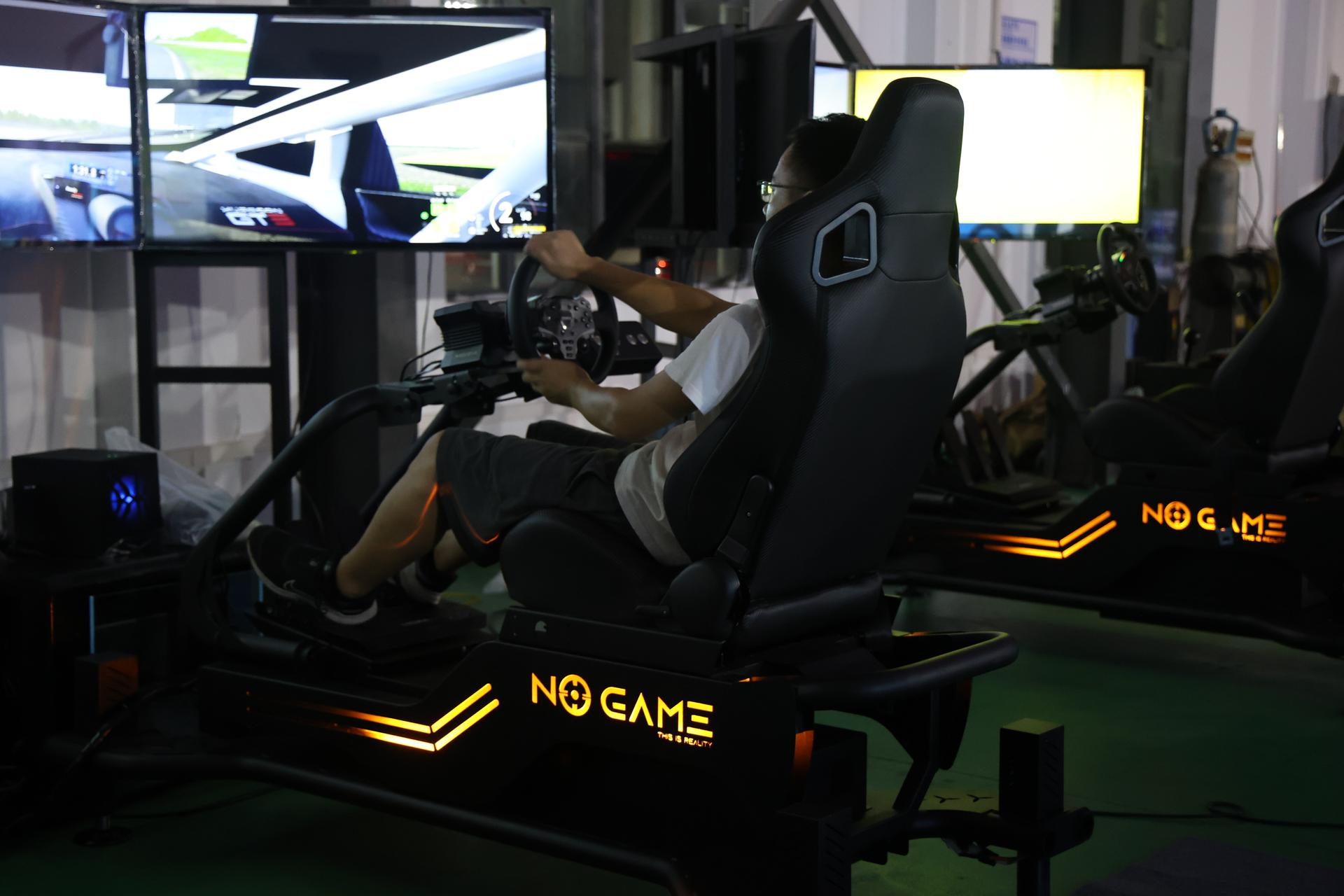

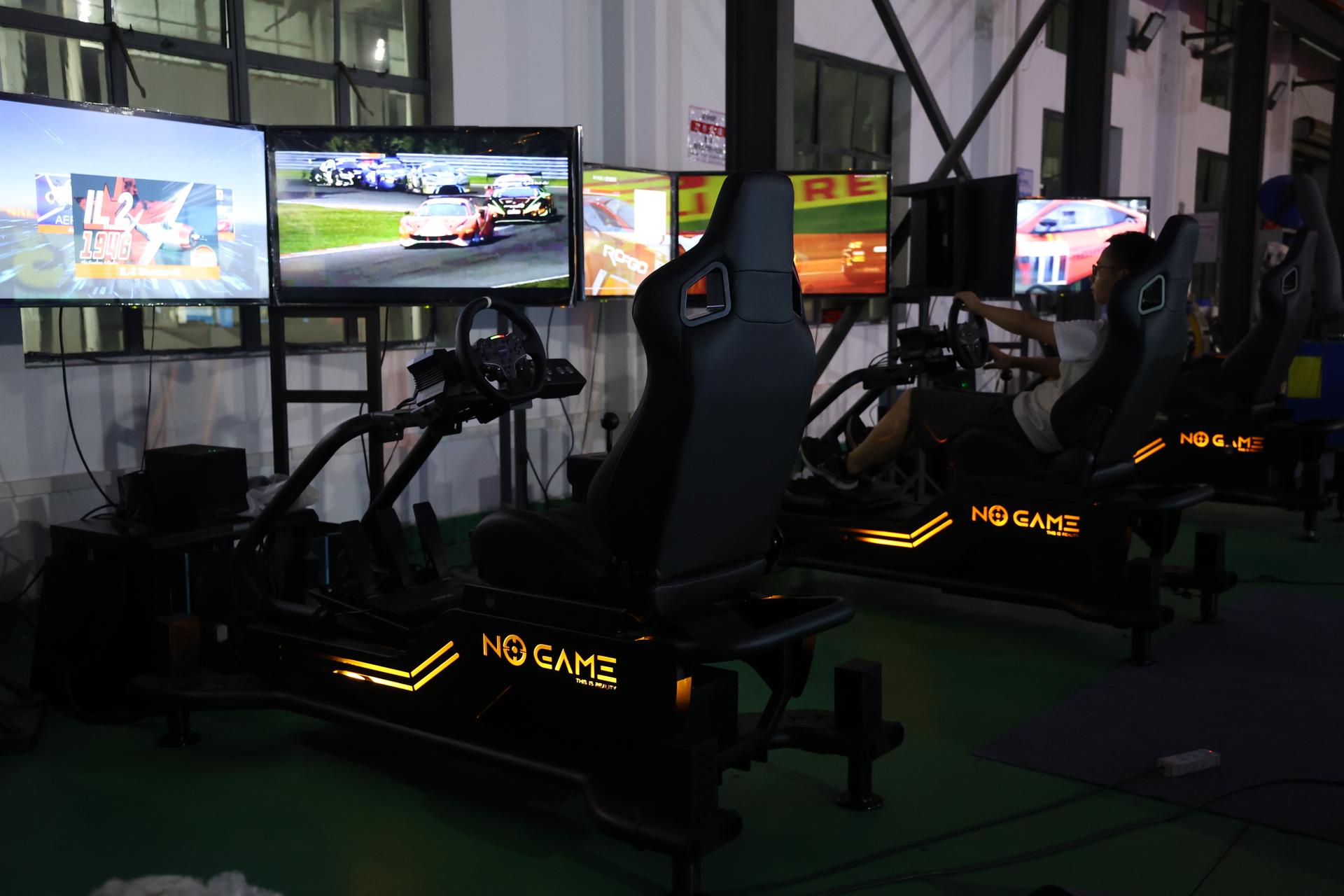

DETAIL 04
Multiplayer Racing
Supports online competition for up to 8 players.
Champion 4-axis / engineering detail
DETAIL 05
Extensive Game Selection with Industry-Leading Compatibility
Professional posture-sensing algorithms and tuning technology are compatible with more games, delivering a constantly fresh experience that helps increase repeat purchases.
Champion 4-axis / engineering detail
Motion System and Chassis
The rustproof rig, motion control box and SimHub compatibility support the simulator's mechanical and telemetry-driven experience.

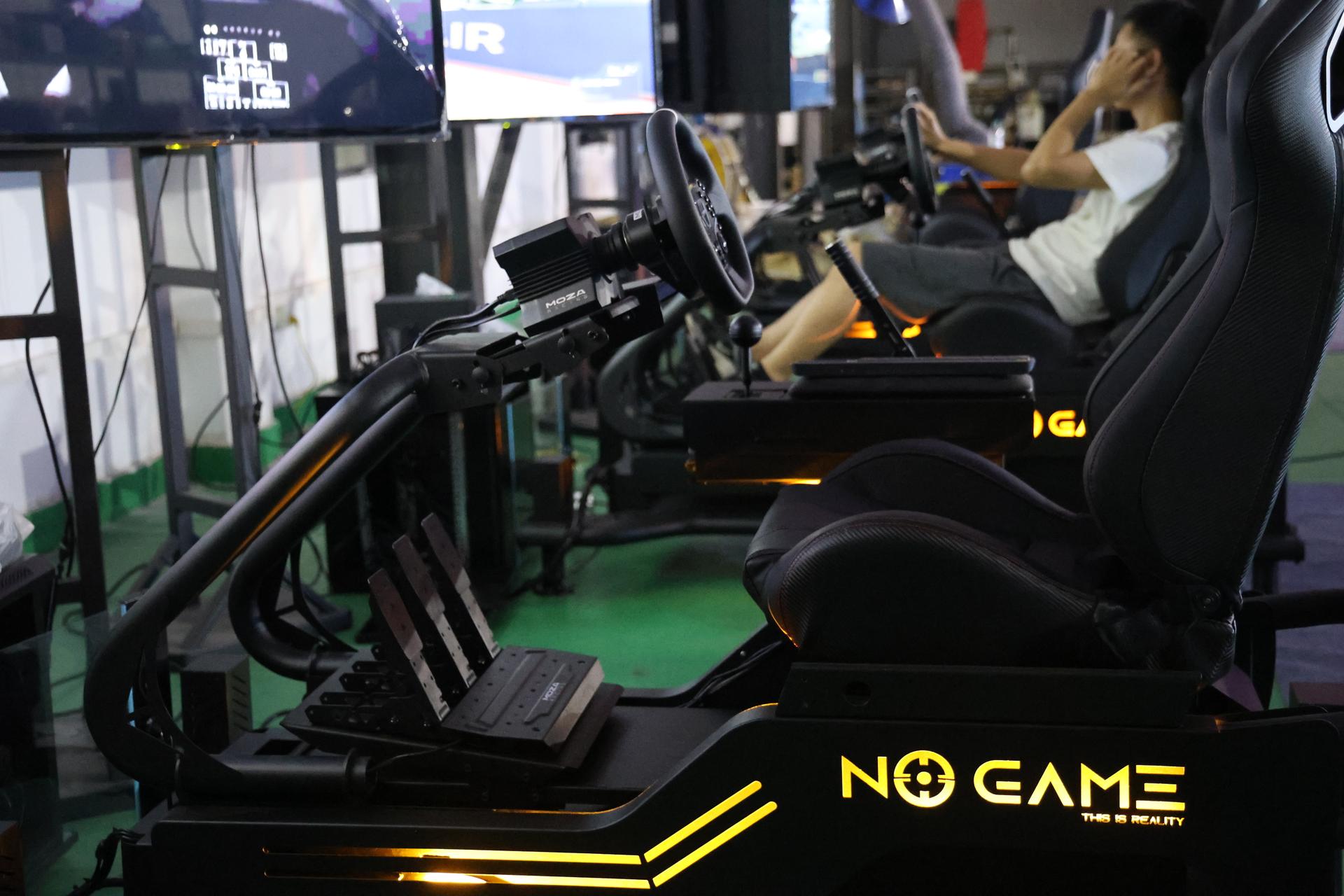

DETAIL 09
Rustproof Car Rig with Advanced Painting
Exclusive rig design focused on stability, durability and rust resistance. An automotive paint process delivers a refined surface finish for a more beautiful, higher-quality appearance.
Champion 4-axis / engineering detail

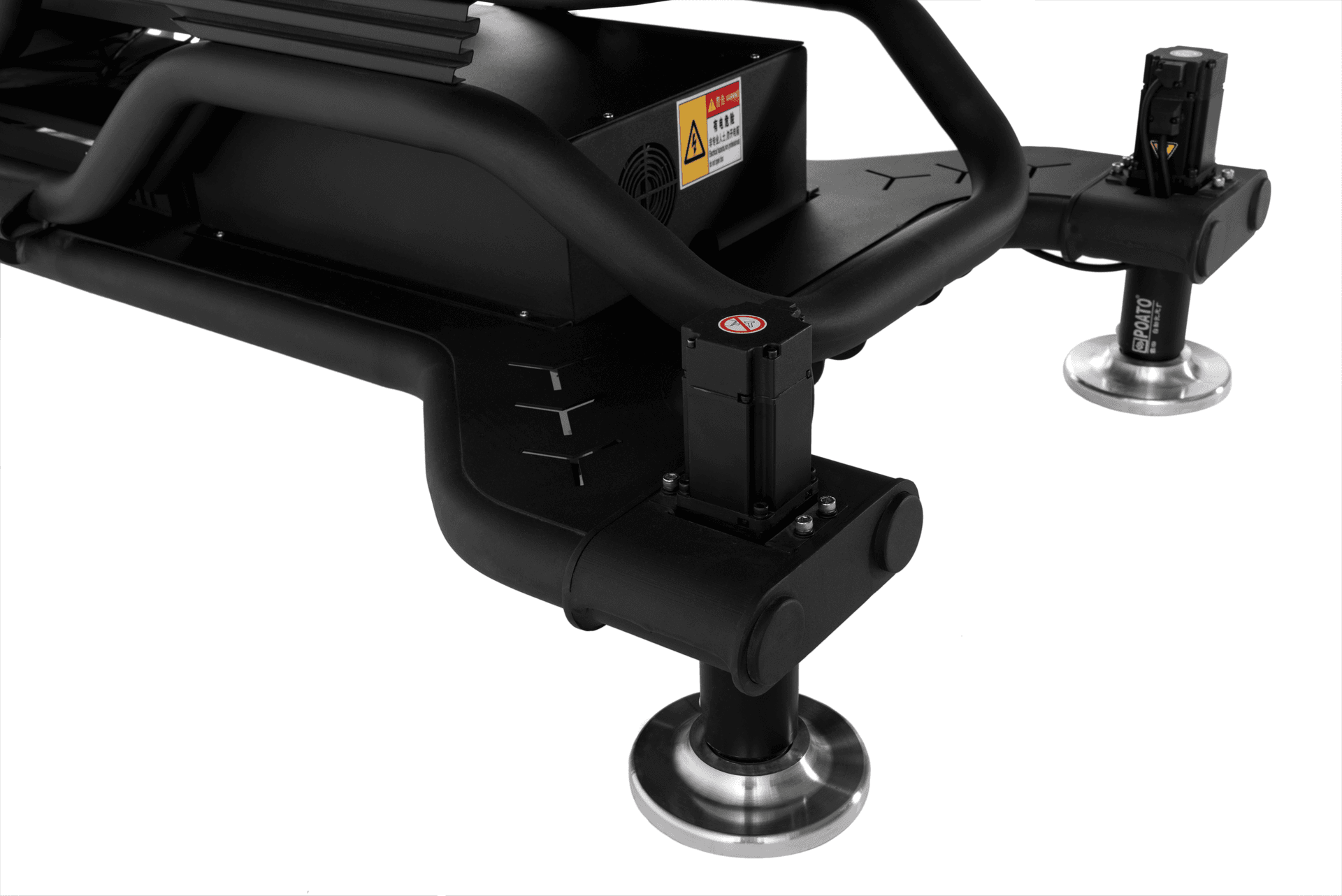

DETAIL 10
Motion Control Box and Server
Brand electric box and server with a 400 W motor for the motion system.
Champion 4-axis / engineering detail

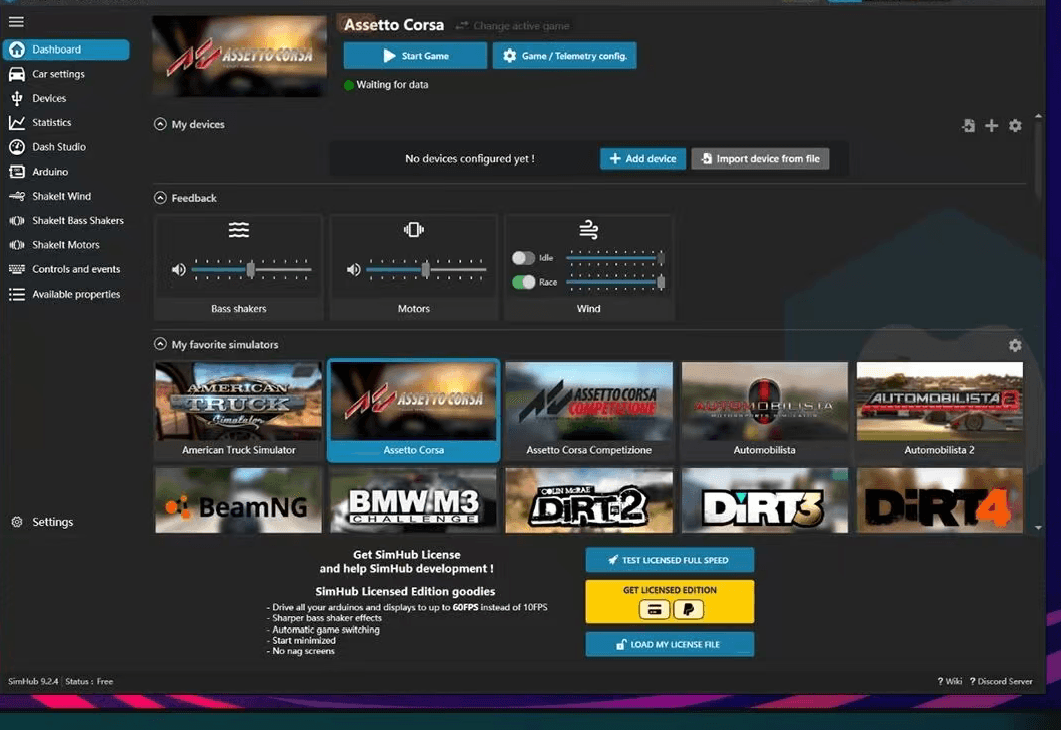

DETAIL 11
SimHub Compatible with Popular Racing Games
SimHub is a sim-racing application that enhances the driving experience by connecting to supported games and using their telemetry data to provide more customizable feedback options. Players can customize and share simulator dashboards to suit their preferences for a more authentic driving experience.
Champion 4-axis / engineering detail
Racing Seat and Ergonomics
A durable supercar-style seat and adjustable driving position are grouped for long-session comfort.
DETAIL 06
Comfortable Racing Chair
Abrasion-resistant fiber-leather seat with soft, breathable fabric. Distance from seat to pedal board is adjustable. Keep your hips as close to the back as possible.
Champion 4-axis / engineering detail
DETAIL 07
Ergonomic Racing Position
Professional racing seat with adjustable seat-to-pedal-board distance.
Champion 4-axis / engineering detail
Display and Visual Immersion
The adjustable display stand and 55-inch 4K screen shape the driver's visual field.

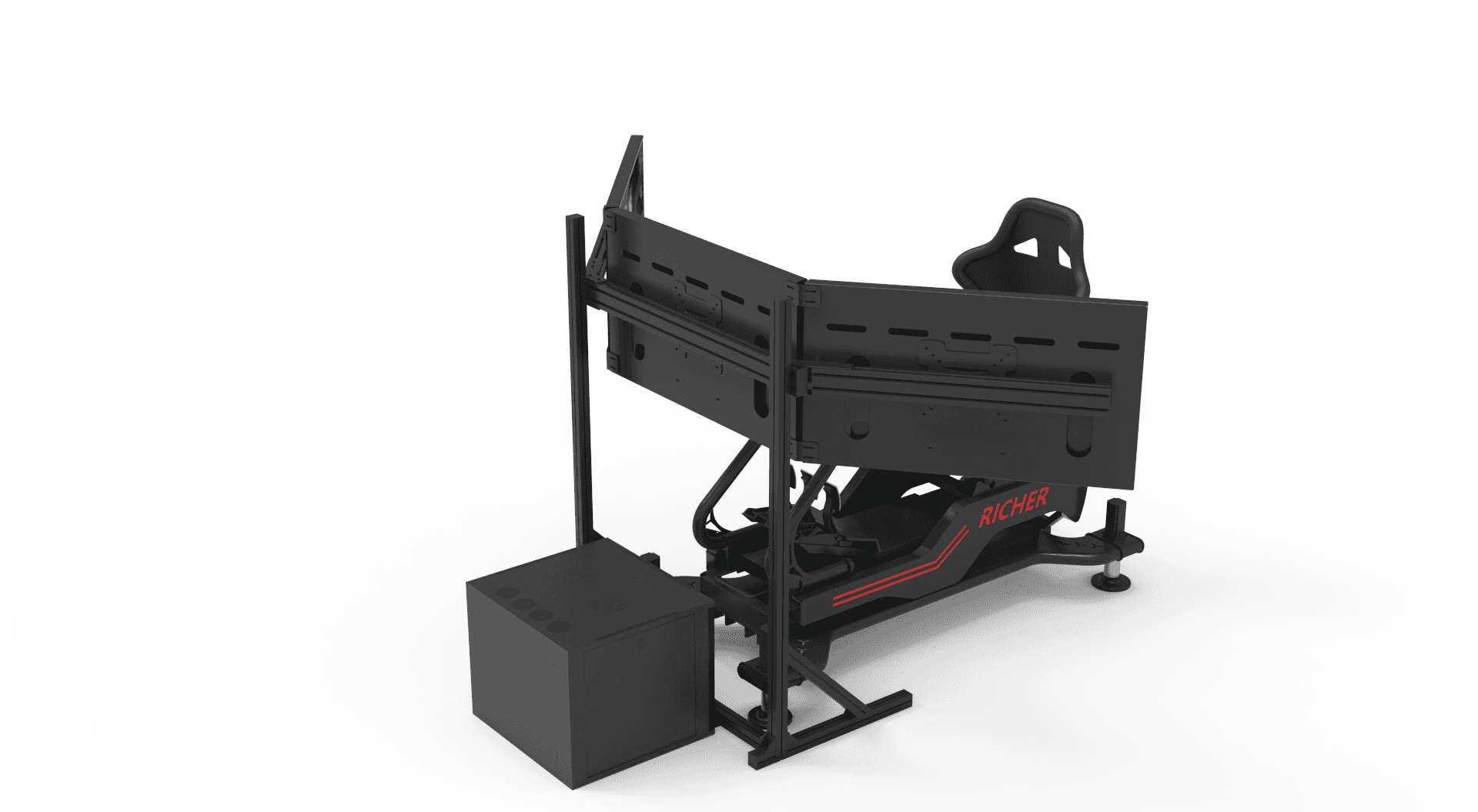

DETAIL 08
Adjustable Screen Stand
Stable stand lets operators adjust screen height for a more comfortable view.
Champion 4-axis / engineering detail

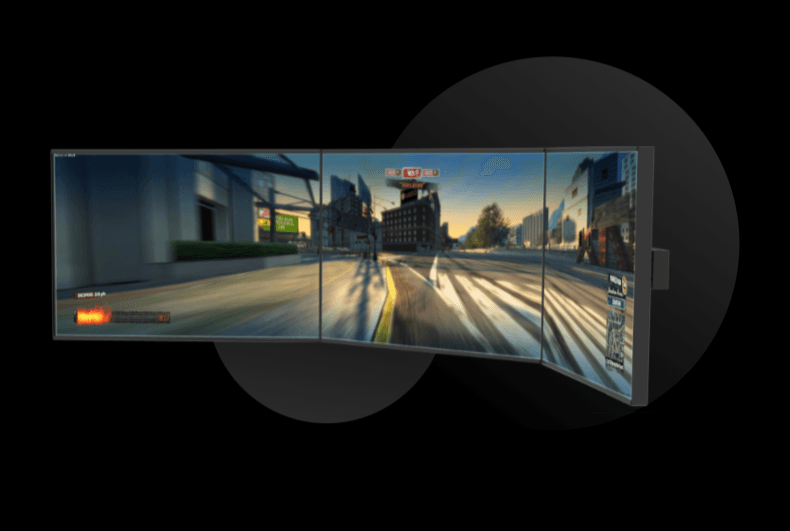

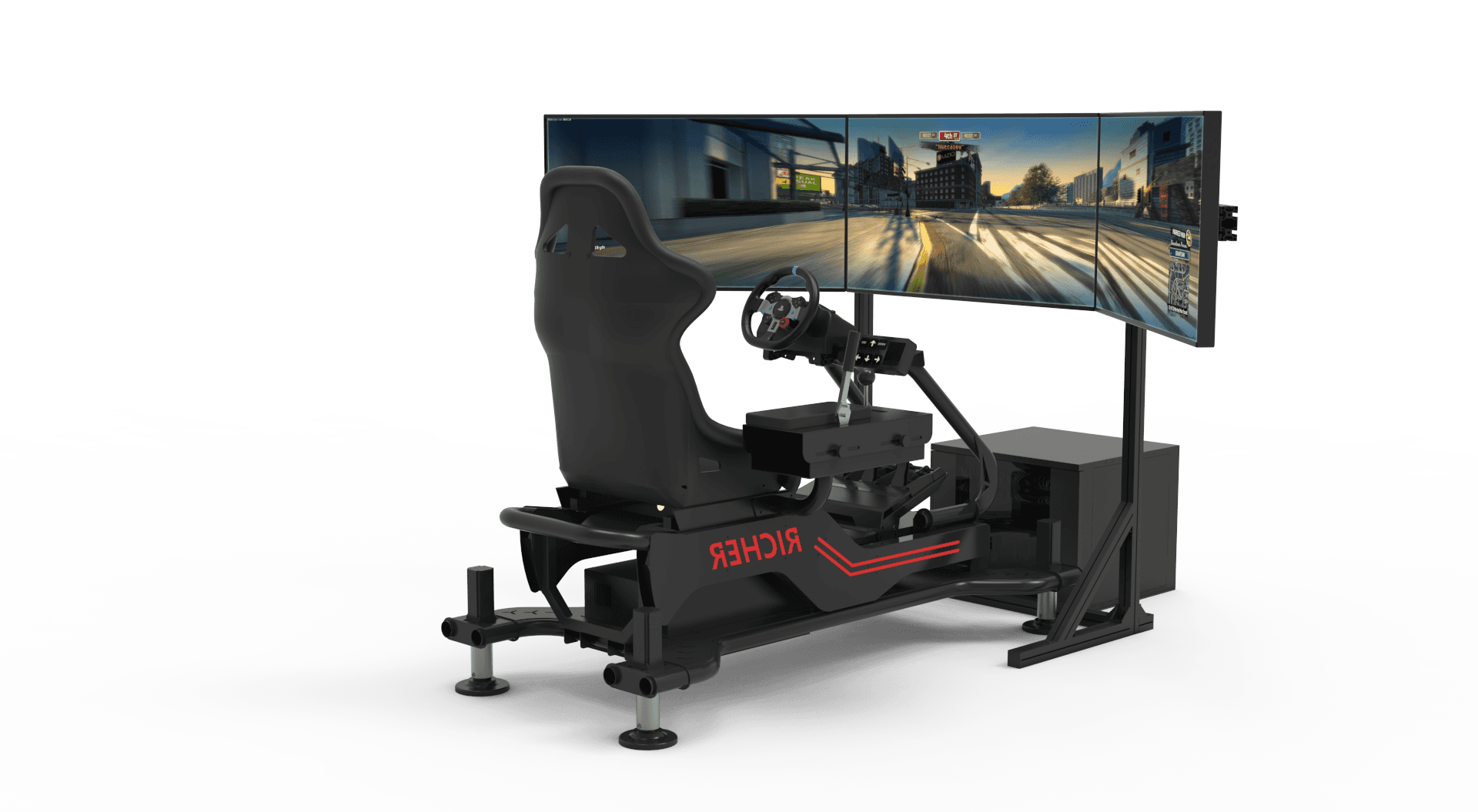

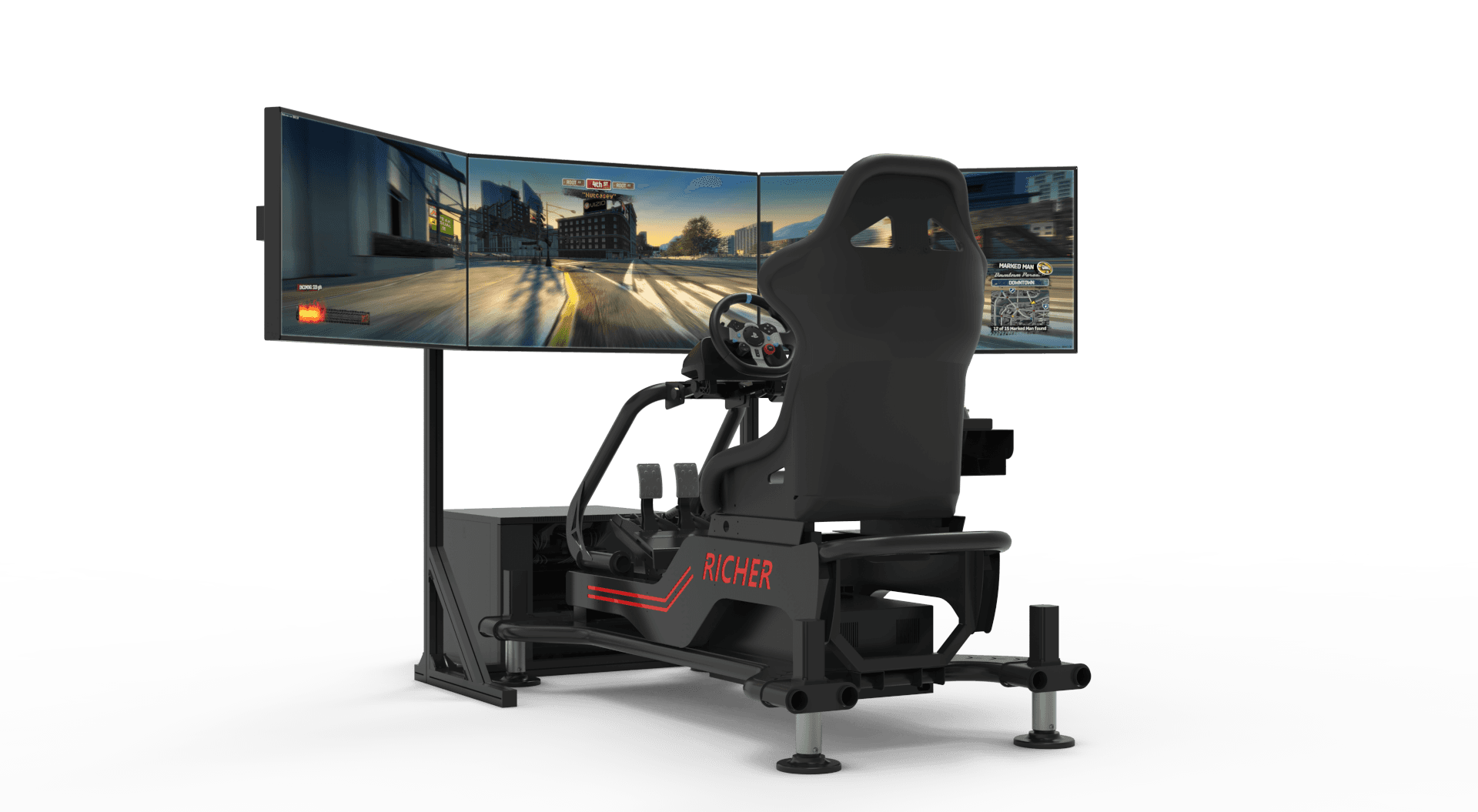

DETAIL 14
Triple Screen with Wider FOV and High Definition
Three 43-inch 2K HD explosion-proof screens with a 120 Hz refresh rate for a wider field of view and more immersive viewing.
Champion 4-axis / engineering detail
Venue Operations and Computing
Audio, payment and the gaming computer support day-to-day commercial operation.
DETAIL 12

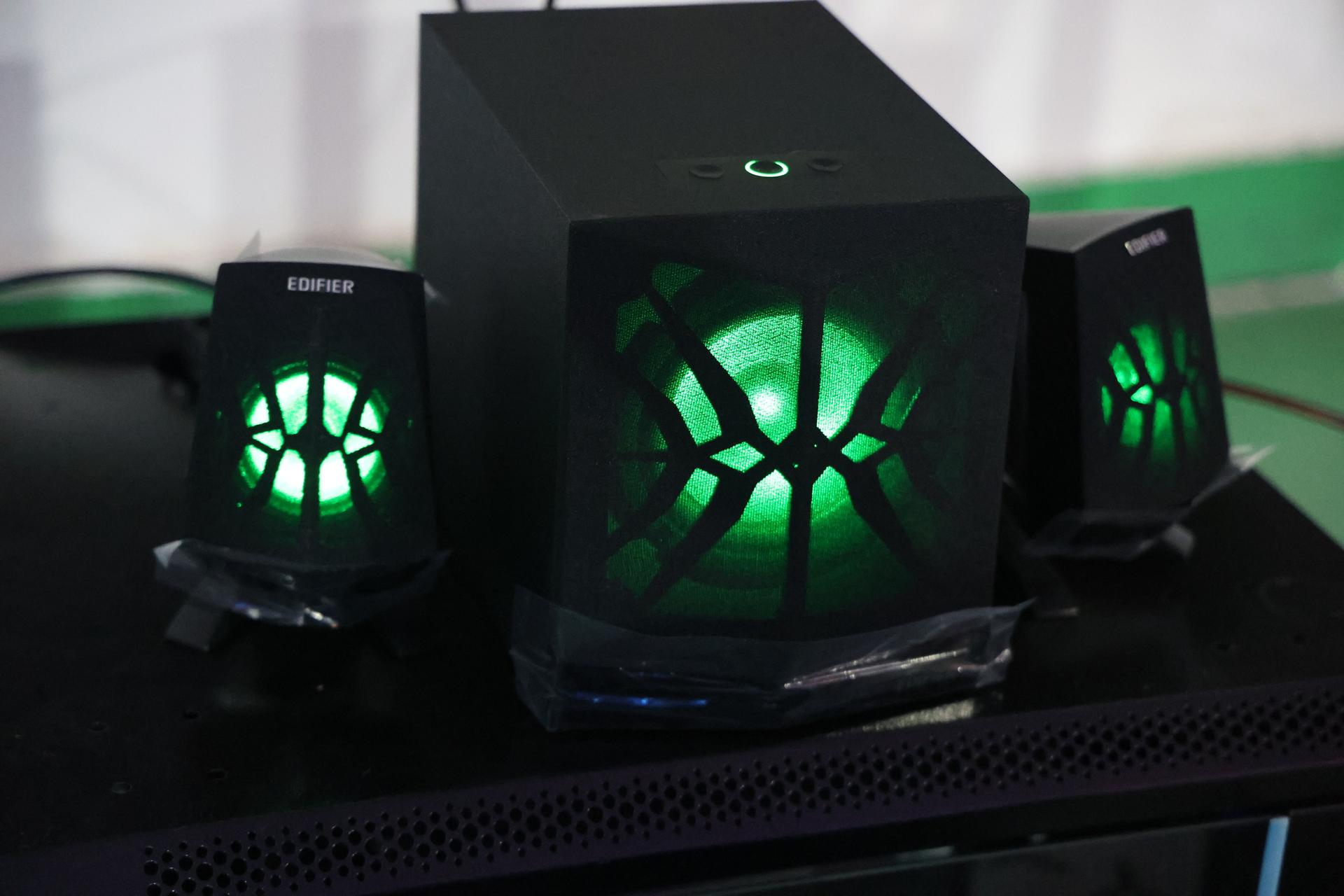

2.1-Channel Speaker System
Speaker system with power amplifier fans and customizable-color breathing lights.
Champion 4-axis / engineering detail
DETAIL 13
Optional Card Payment
Optional coin/card payment system for commercial venue operation.
Champion 4-axis / engineering detail
DETAIL 15
High-End Gaming Computer
i5-14600KF + Gigabyte B760M + 16 GB RAM + 512 GB HDD + 5060 Ti.
Champion 4-axis / engineering detail
Configuration overview
Key components for a commercial setup
The following configuration is based on Champion 4-axis product material. Final content and options are confirmed with your quotation.

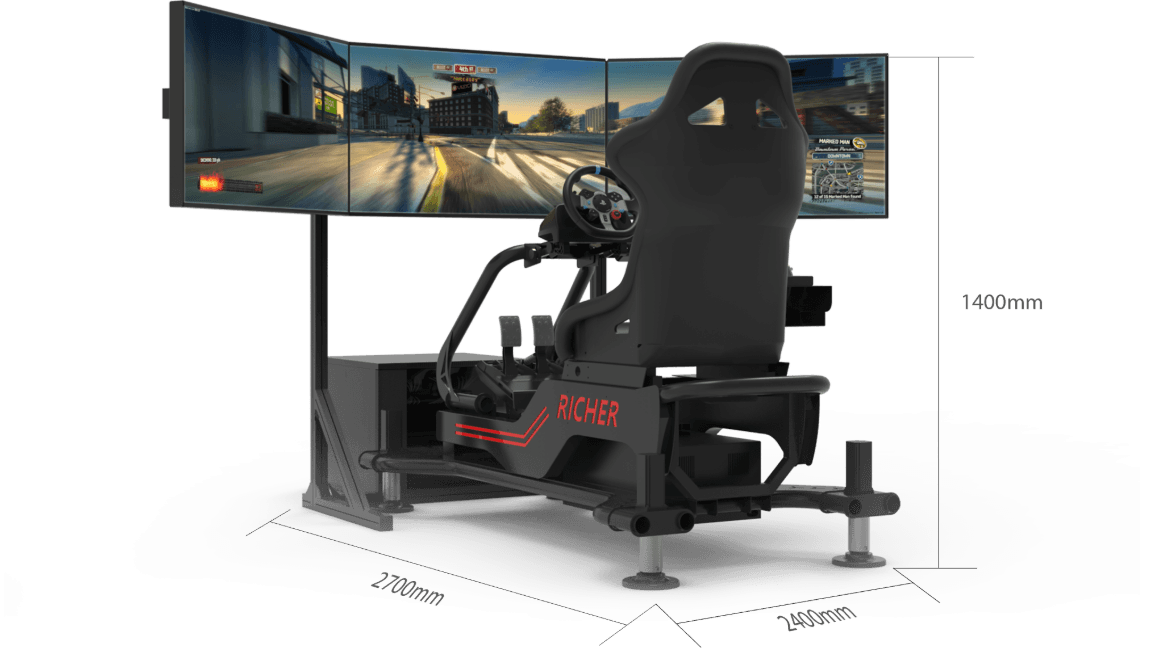

| Machine dimensions (L × W × H) | 2700 × 2400 × 1200 mm |
|---|---|
| Power requirement | 220 V / 2400 W |
| Movement | 3 DOF: surge, heave, pitch |
| Machine weight | 150 kg |
| Load capacity | 200 kg |
| Platform response time | ≤ 5 ms |
| Service life | ≥ 50,000 hours |
| Package volume | 4 m³ |
| Warranty | 1 year |
| Listed lead time | 20 days |
| Racing motion platform | 1 |
| Monitor stand | 1 |
| Keyboard | 1 |
| Single-screen version | 1 |
| Three-screen version | 3 screens |
| Software | 1 |
| VR headset | Optional, 1 |
| Flight-game controls | Optional compatible Logitech G X56 HOTAS joystick |
