6 DOF Full Motion
Six-axis motion is built around high-speed electric cylinders for responsive racing feedback.
Champion 6 DOF cockpit03 / 09
Commercial full-motion racing attraction

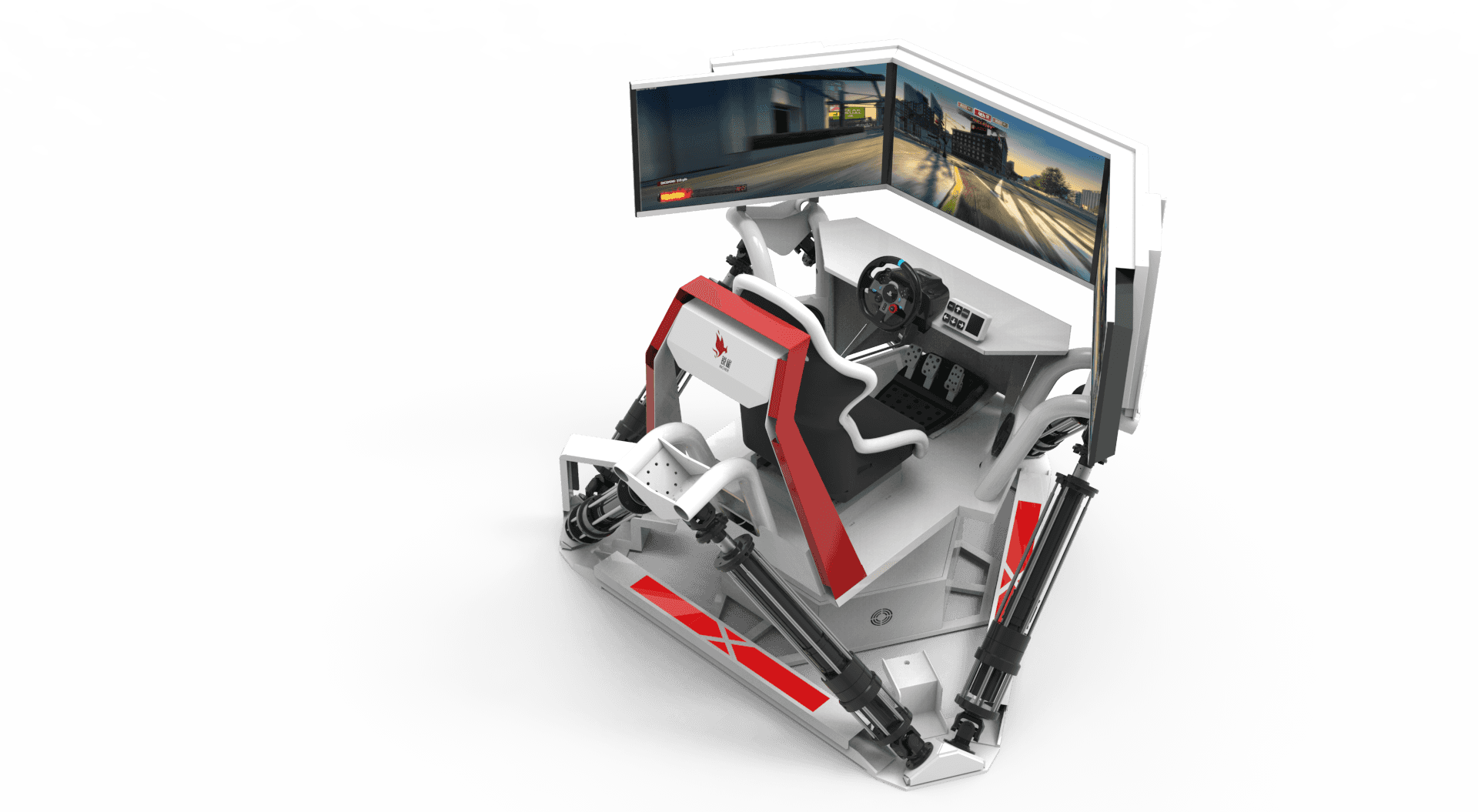

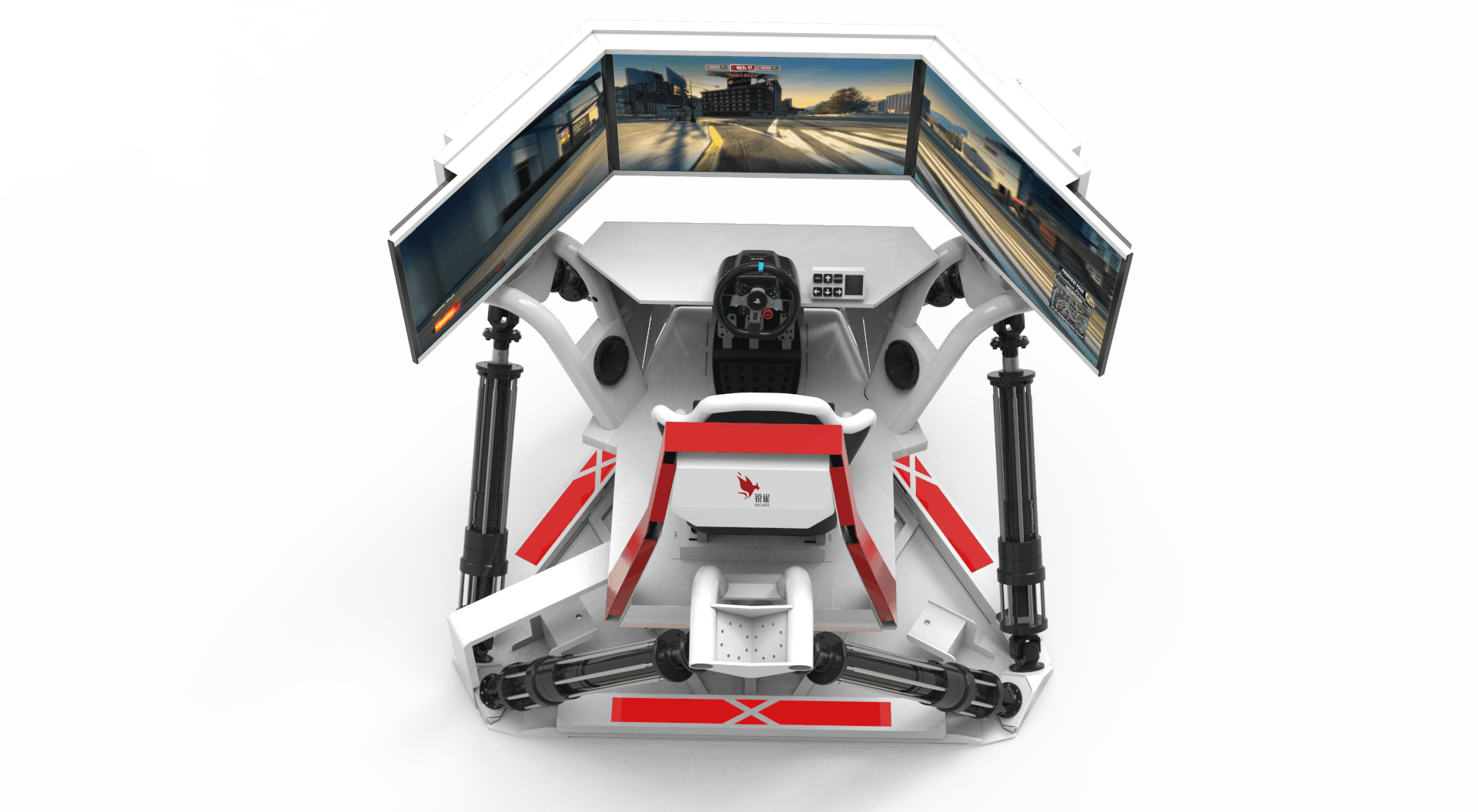

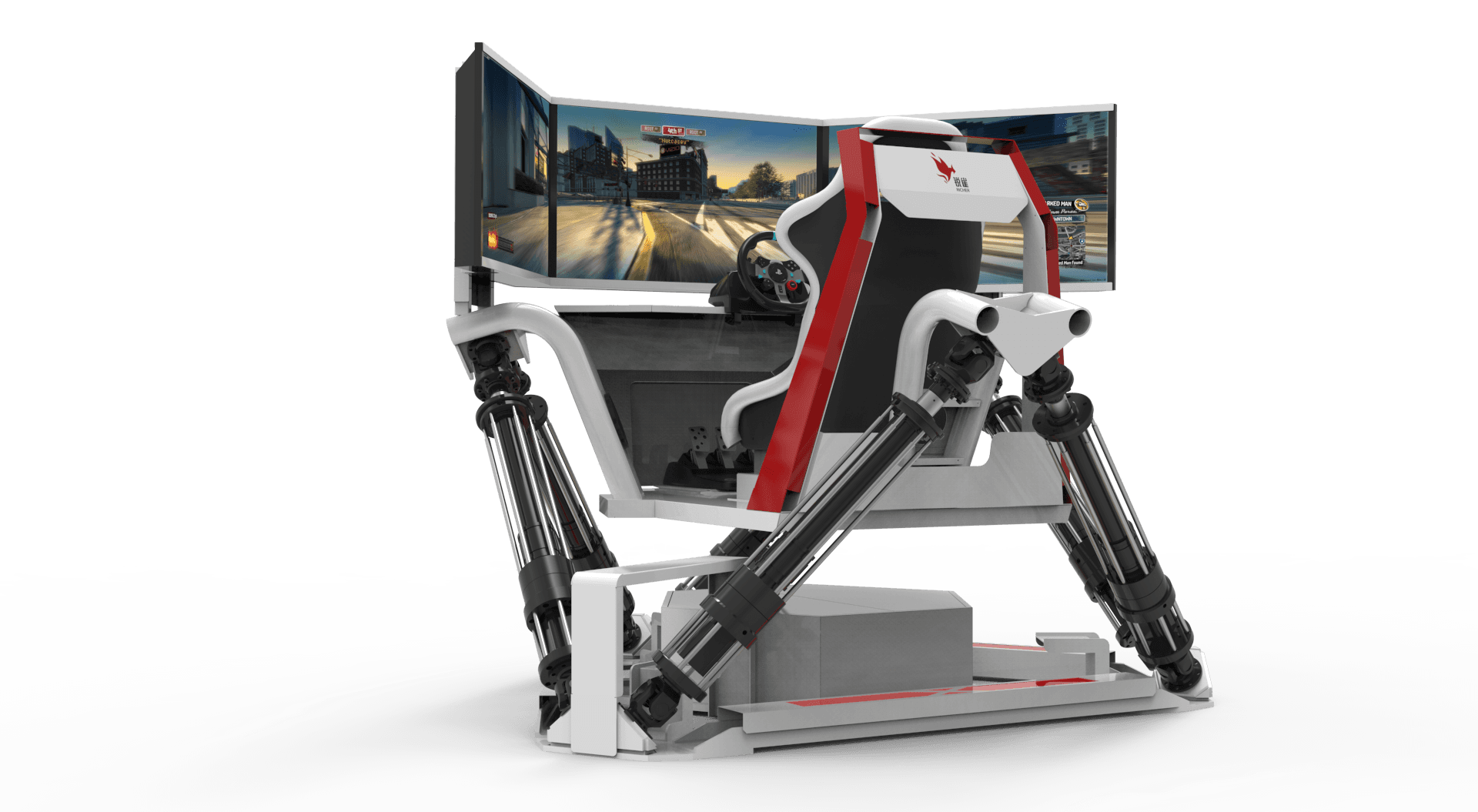

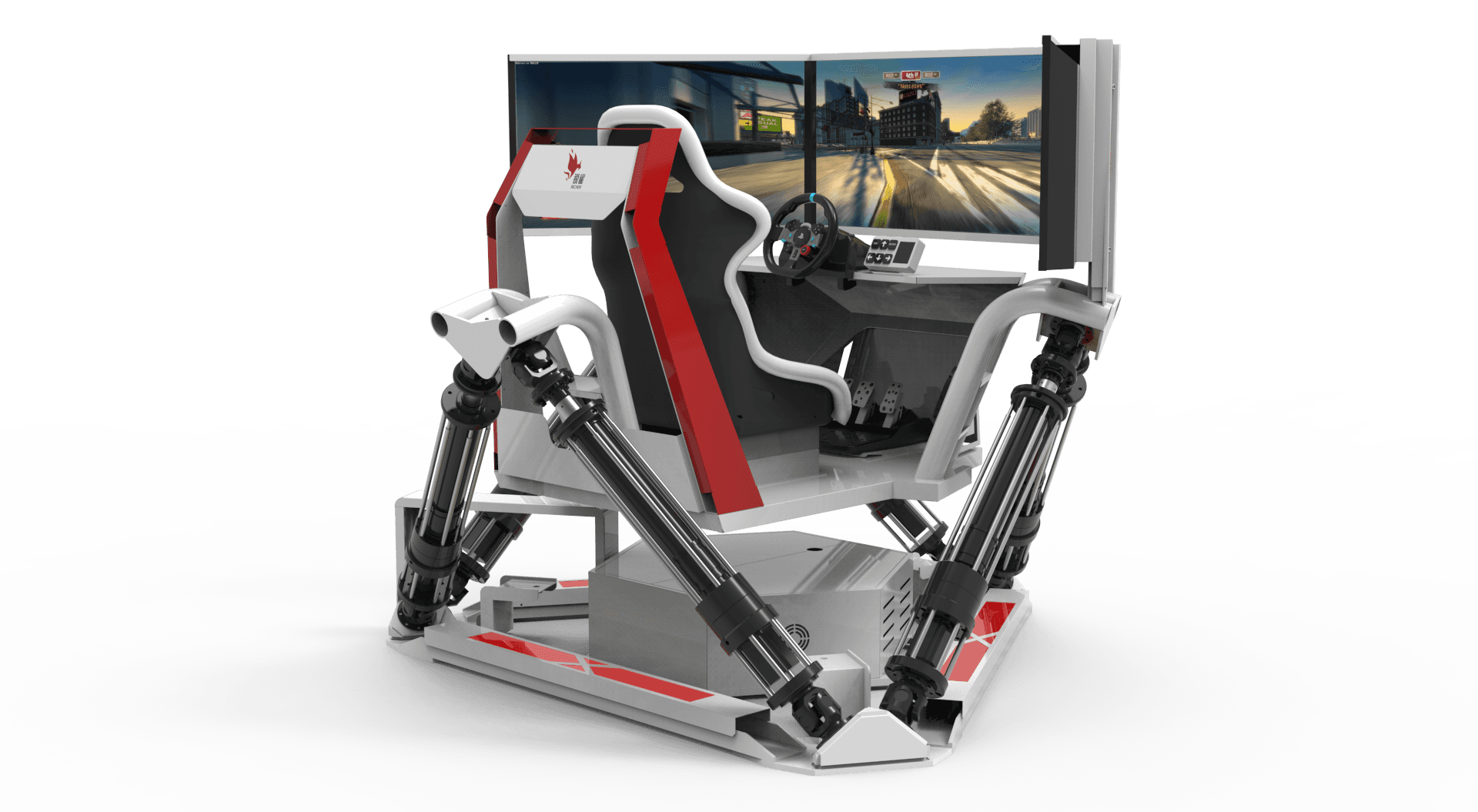

Champion 6 DOF
Full Motion Racing Simulator
A commercial six-axis racing cockpit built around high-speed full-motion feedback, direct-drive controls and a triple-screen racing view for entertainment venues.
6 DOF
Full-motion axes
400 mm
Cylinder stroke
8
Players online
- SKU
- WH-CHAMPION-6DOF-SIM
- Category
- Arcade Racing Simulators
- Core experience
- Six-axis full-motion sim racing
- Display setup
- Three 43-inch 2K screens
1.2 kW Cylinder Power
A professional electric-cylinder system combines long stroke, fast response and commercial-duty reliability.
High-Configuration Hardware
Direct-drive controls, Hall-sensor pedals, a high-specification PC and triple 2K display support the experience.
Up to 8 Players Online
Configure connected units for social races and a repeat-play attraction in your venue.
Engineering detail story
Full motion, built for
commercial race venues.
Explore all 16 hardware and operating details from the supplied Champion 6 DOF product specification.
Six-Axis Motion System
The cylinder, acceleration and integrated servo hardware form the motion core.
DETAIL 01

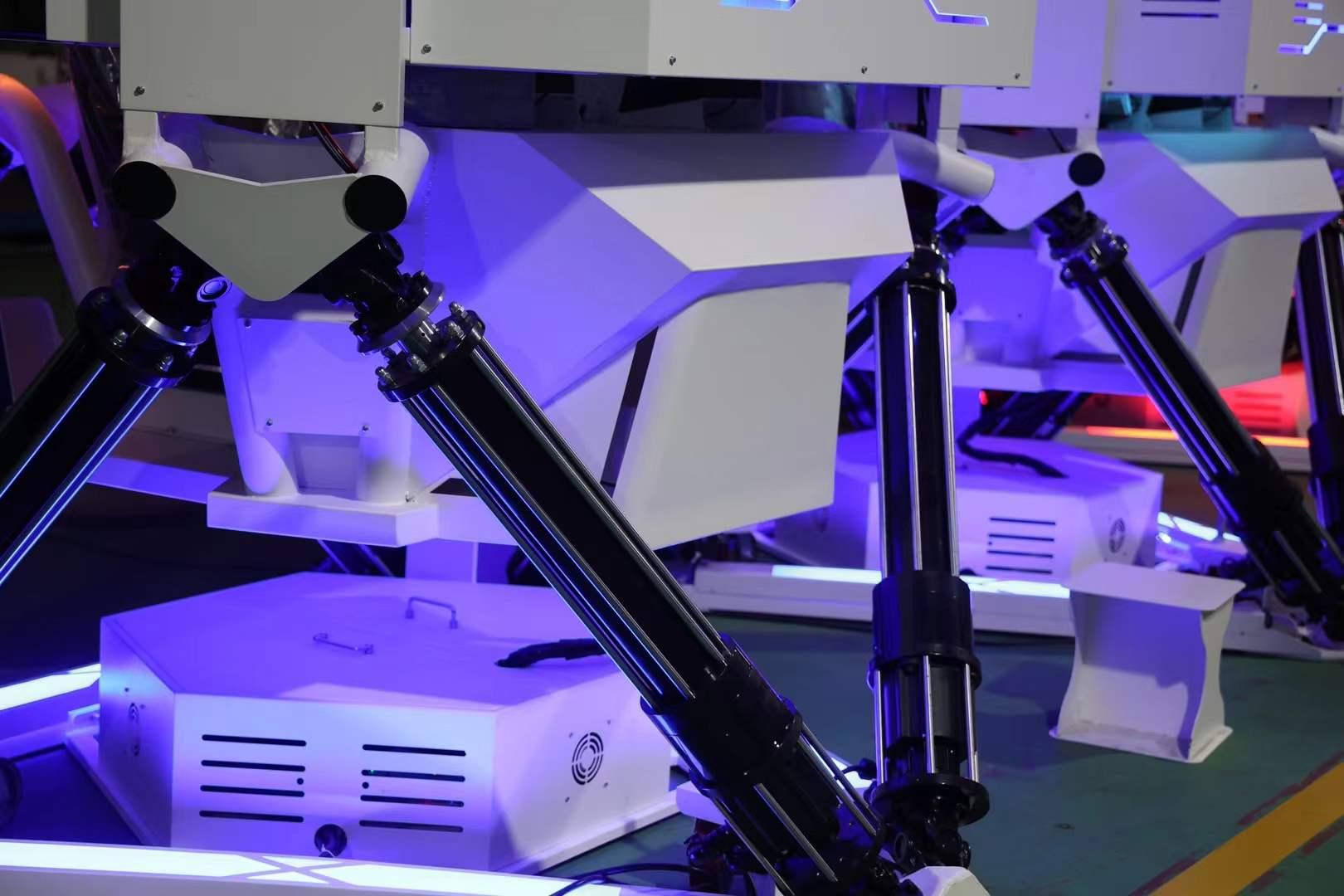

Excellent Precise High-Speed Cylinder
The output of a single cylinder is not less than 2.3 kN, with more than 400 mm stroke. X, Y and Z-axis movement speed reaches 400 mm/s, angular speed exceeds 17°/s, displacement control accuracy is less than 0.1 mm, and platform response time is less than 5 ms.
Champion 6 DOF / engineering detail
DETAIL 02

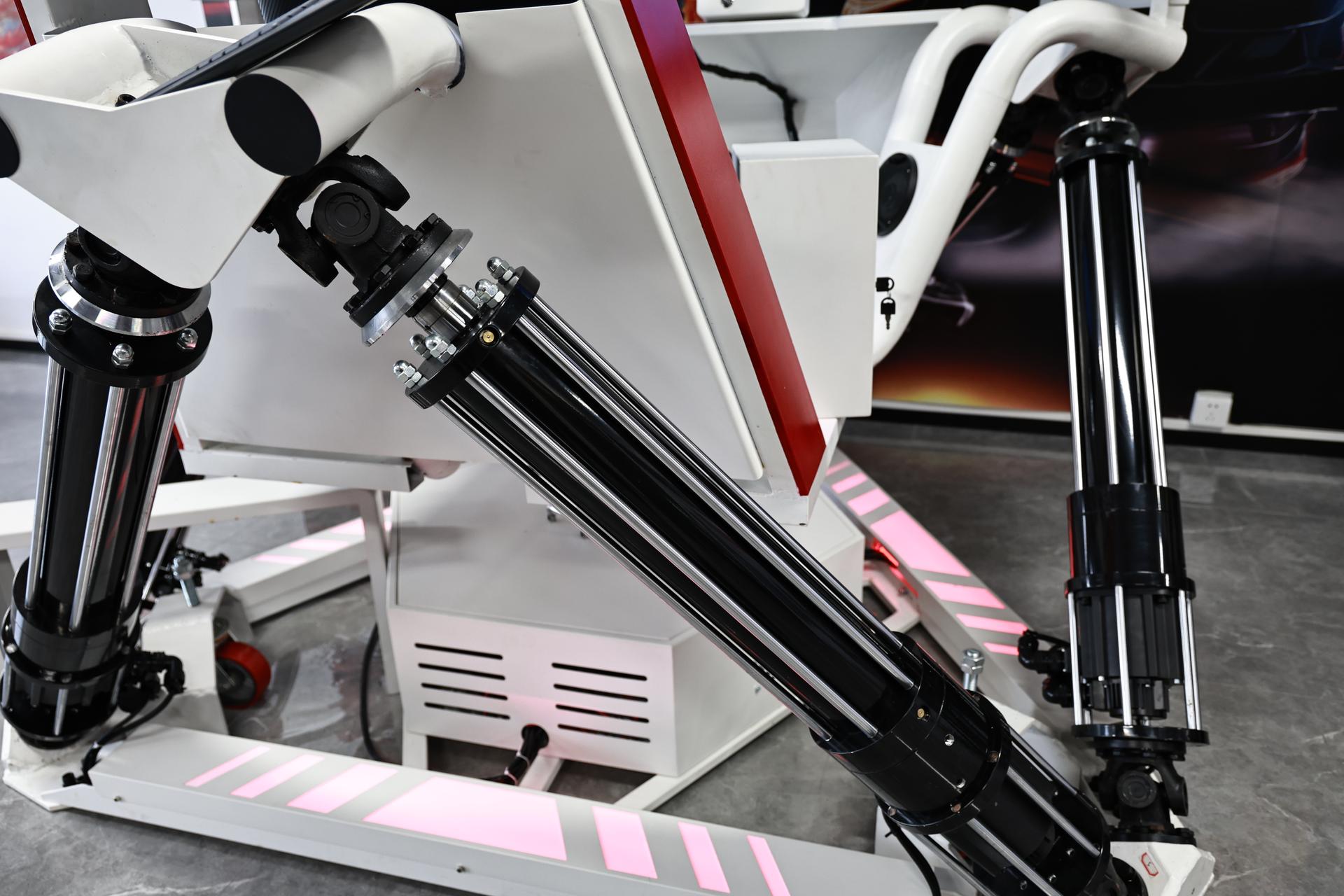

Excellent Acceleration Performance
A motor rated up to 1600 W delivers 1G acceleration to simulate cockpit pitch, roll, rises, bumps and vehicle back-seat feedback.
Champion 6 DOF / engineering detail
DETAIL 03

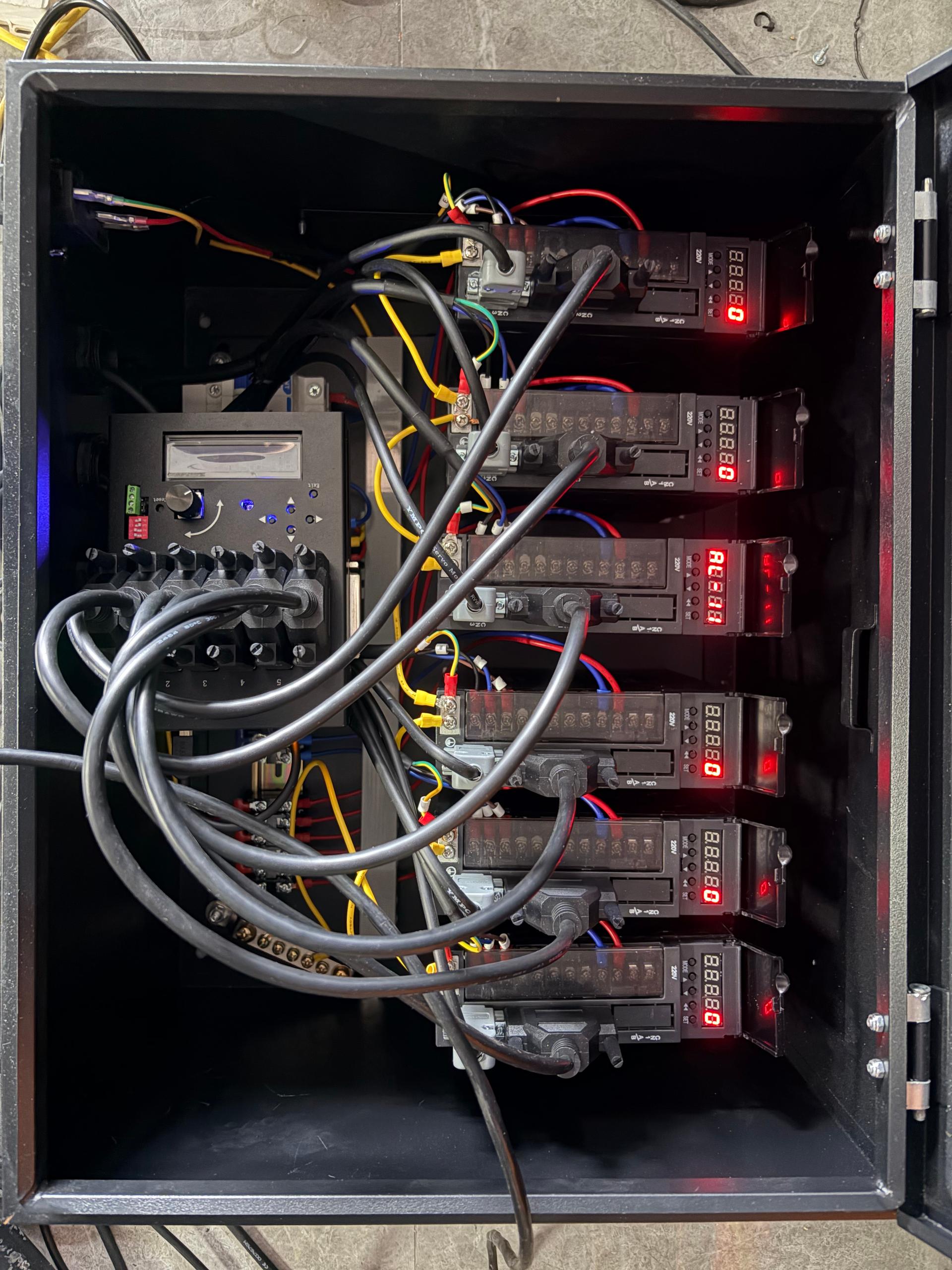

High Integration, Low Failure
A high-quality servo driver, power case and controller board are housed together in a single box for easier maintenance.
Champion 6 DOF / engineering detail
Driving Hardware and Cockpit
Direct-drive steering, Hall-sensor pedals, a higher-configuration PC and an adjustable racing seat support the driver.
DETAIL 04

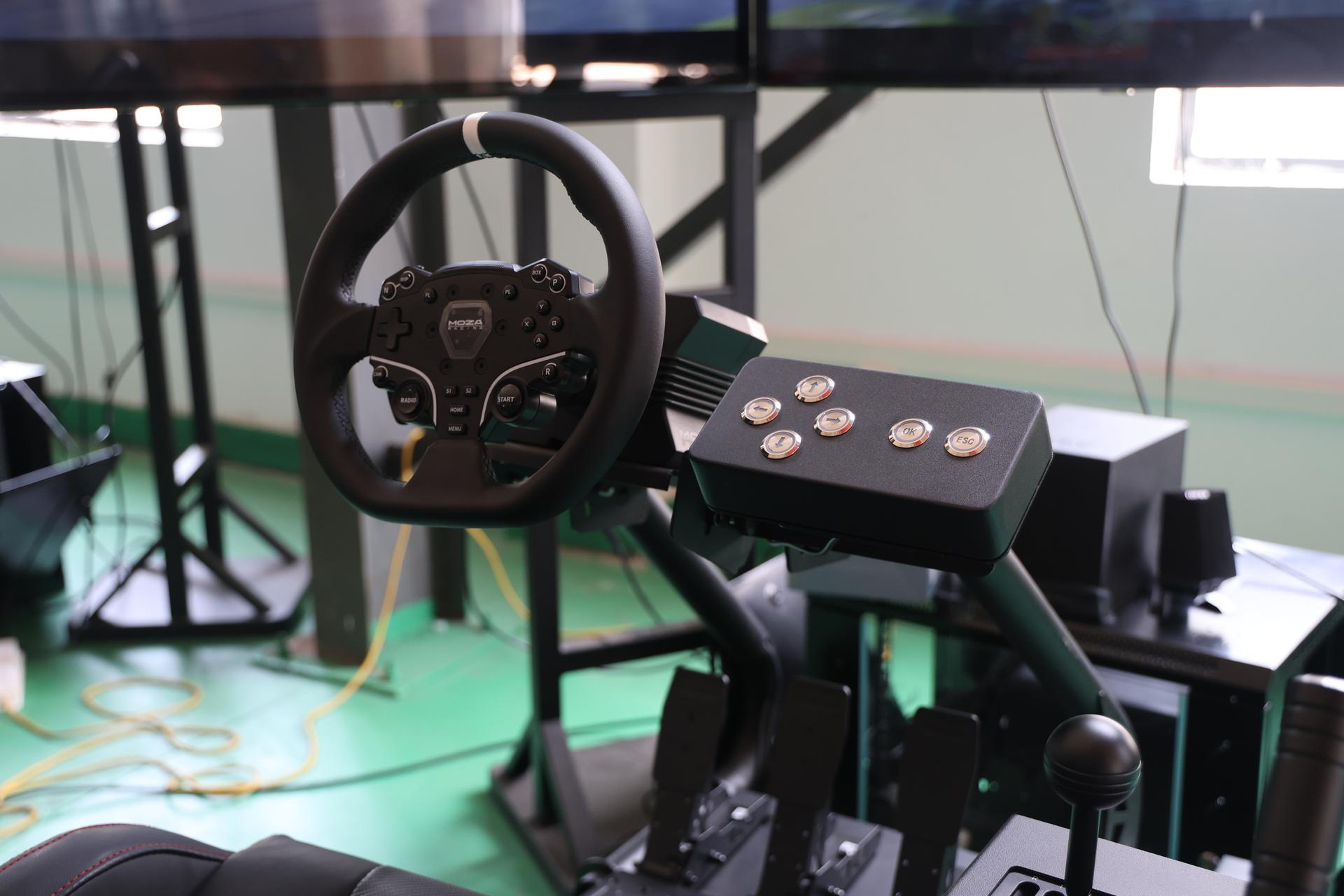

MOZA R5 Direct Drive Steering Wheel
5.5 Nm of direct-drive torque with aviation-grade aluminum, high-quality leather and high-strength steel for durable, precise steering control.
Champion 6 DOF / engineering detail
DETAIL 05

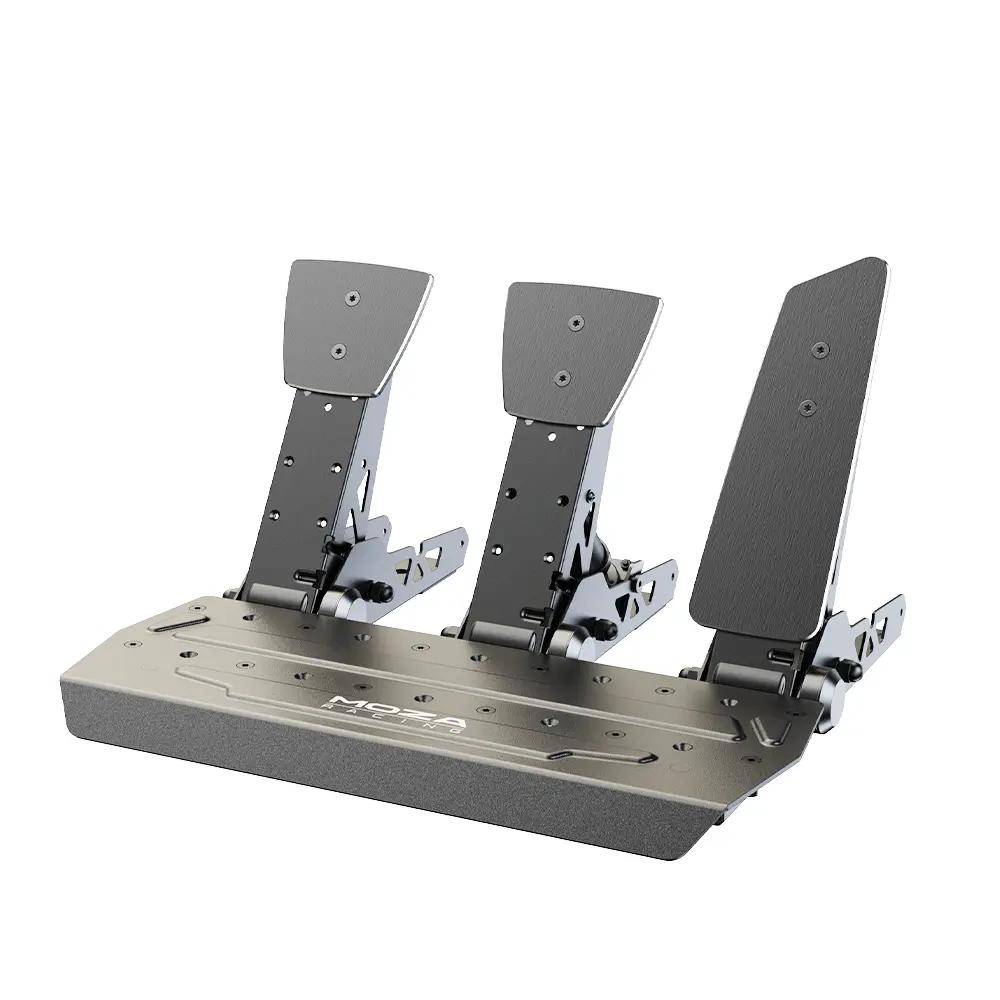

MOZA SR-P Pedal
A high-precision Hall sensor supports stable, durable pedal performance for consistent driving control.
Champion 6 DOF / engineering detail
DETAIL 06

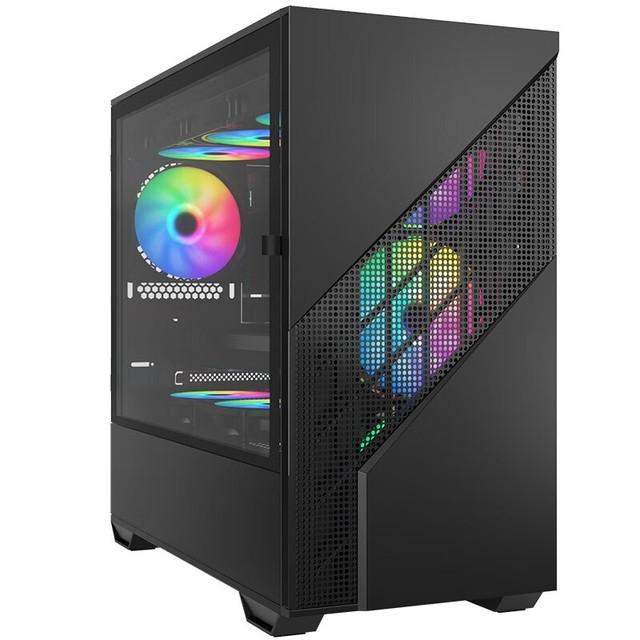

Higher-Configuration PC
i5 14600KF, Gigabyte B760M, 16 GB RAM, 512 GB HDD and 5060 Ti graphics help the game experience run smoothly.
Champion 6 DOF / engineering detail
DETAIL 07

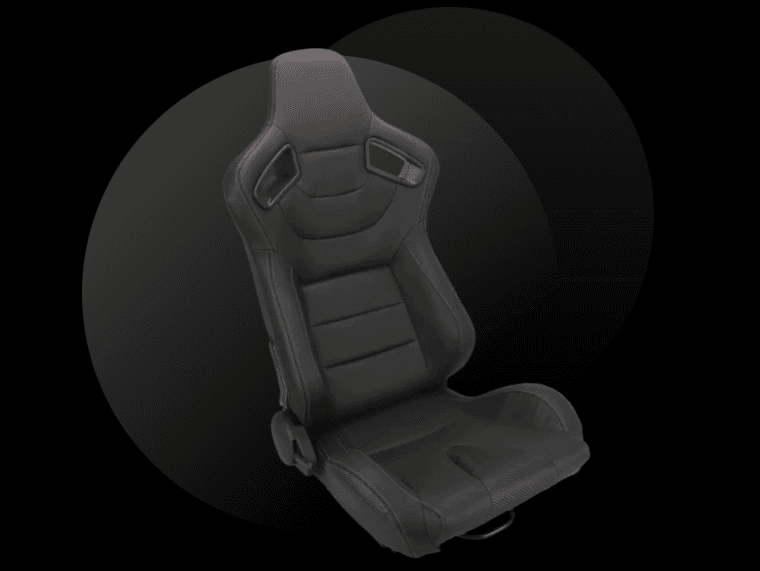

Ergonomically Designed Comfortable Racing Seat
A professional racing seat keeps the driver supported and allows adjustment of the seat-to-pedal-board distance.
Champion 6 DOF / engineering detail
Display, Access and Finish
Triple displays, operator access, mobile placement, ambient lighting and automotive paint complete the physical setup.
DETAIL 08

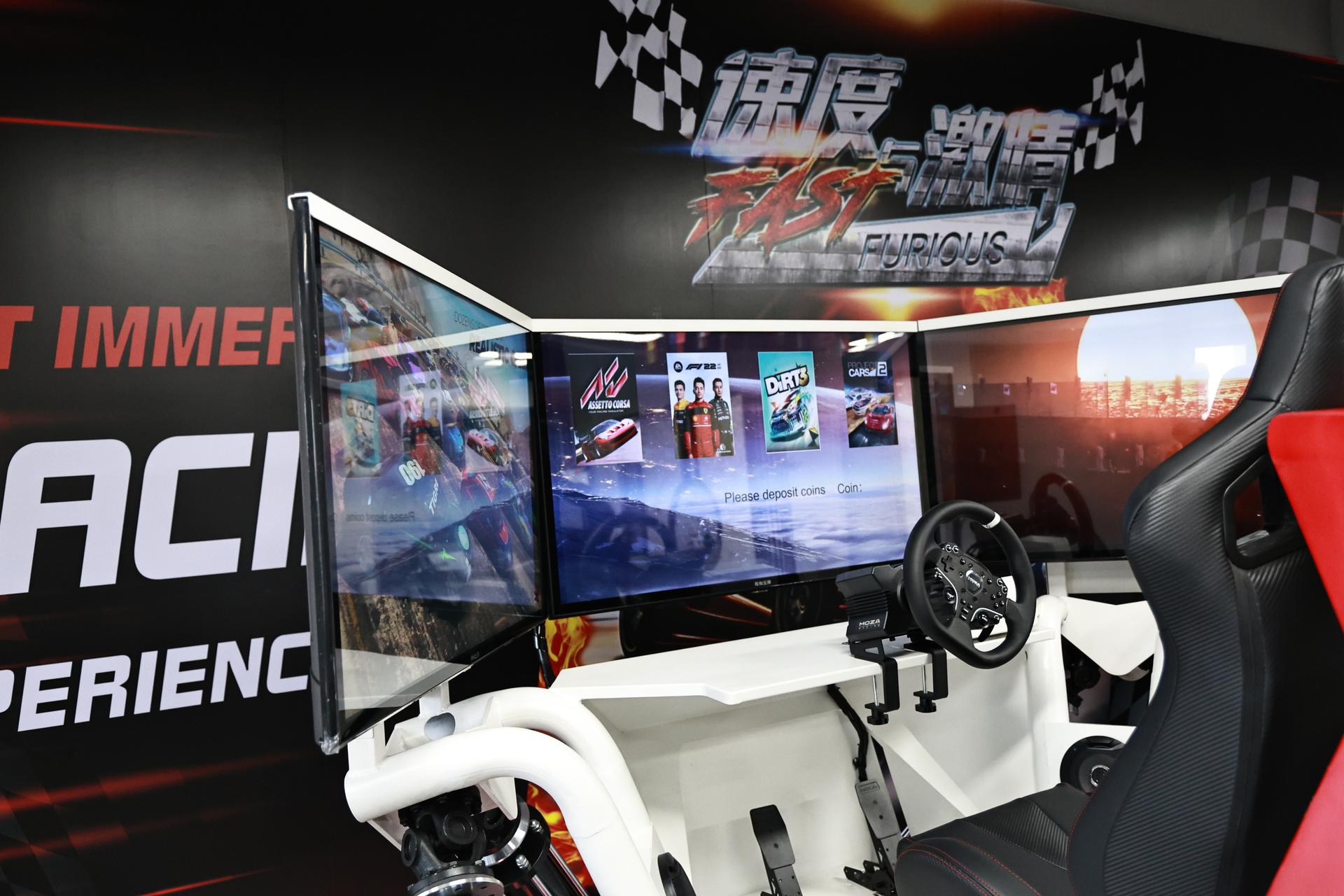

High Resolution, More Immersive Experience
Three 43-inch 2K HD explosion-proof screens create a wider and more immersive racing view.
Champion 6 DOF / engineering detail
DETAIL 09

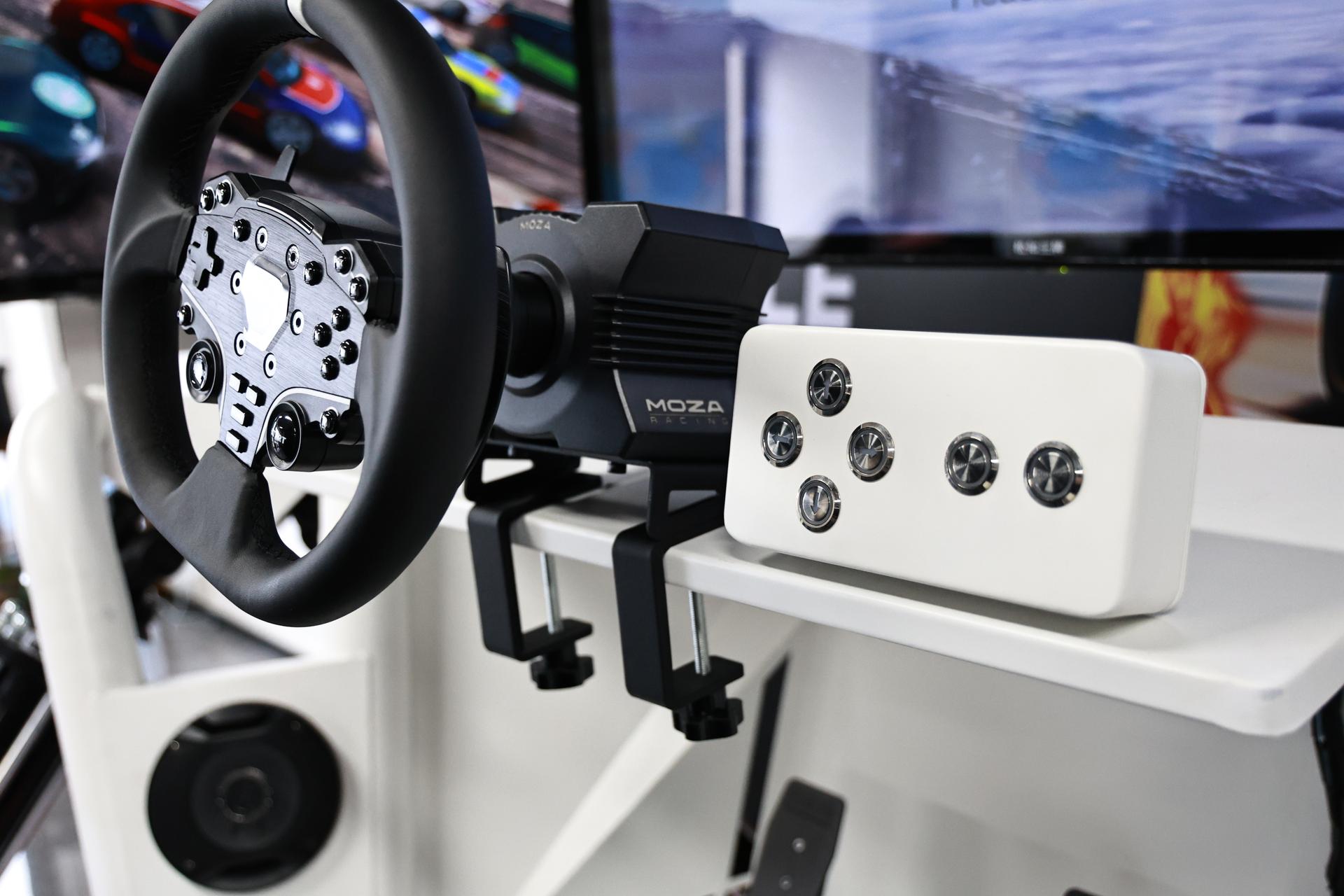

Quick-Access Physical Button Panel
A user-friendly physical button panel helps players operate quickly and saves operating time for the venue.
Champion 6 DOF / engineering detail
DETAIL 10

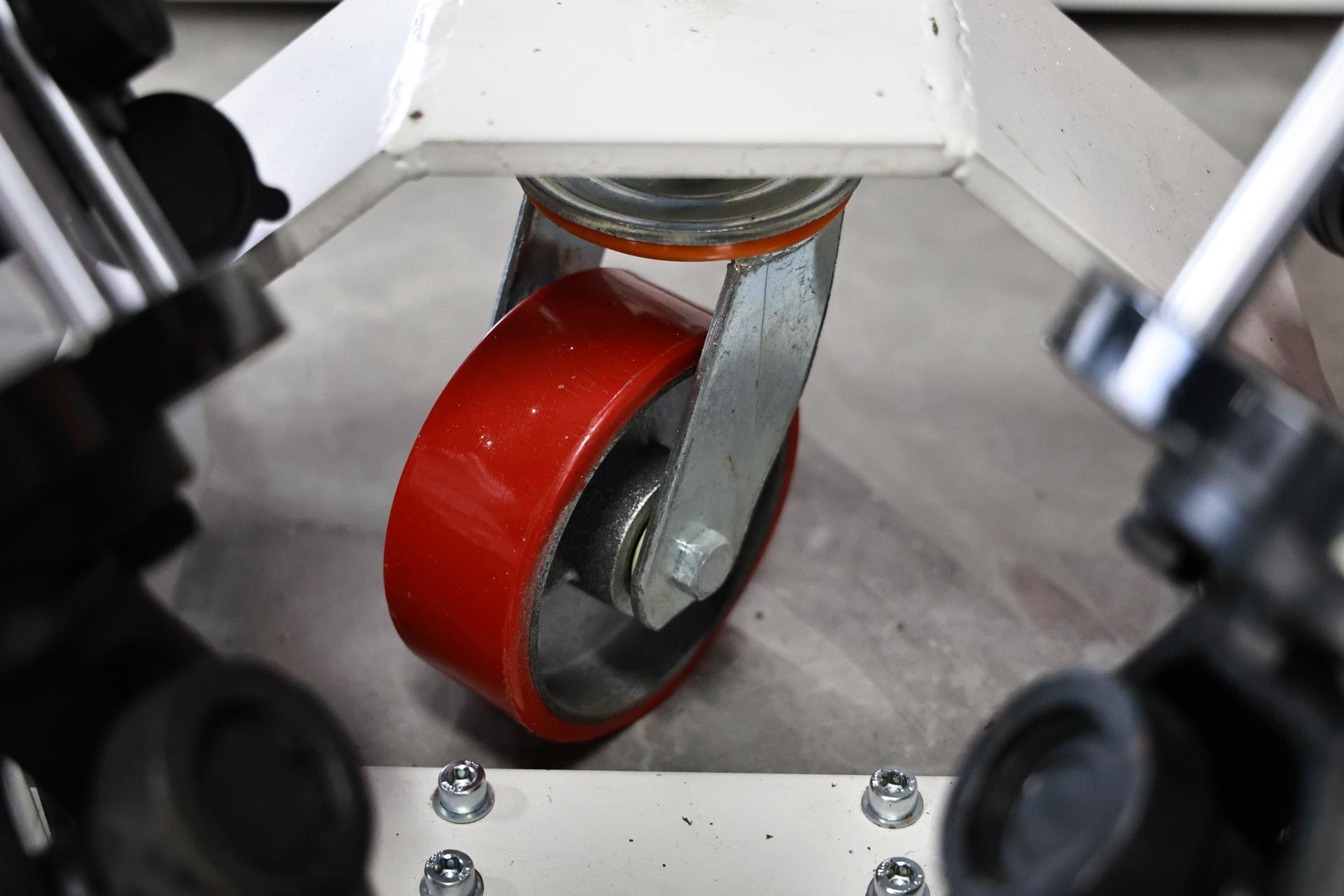

Elevating Universal Casters
Sturdy, wear-resistant elevating universal casters make the simulator easier to move by forklift or elevator.
Champion 6 DOF / engineering detail
DETAIL 11

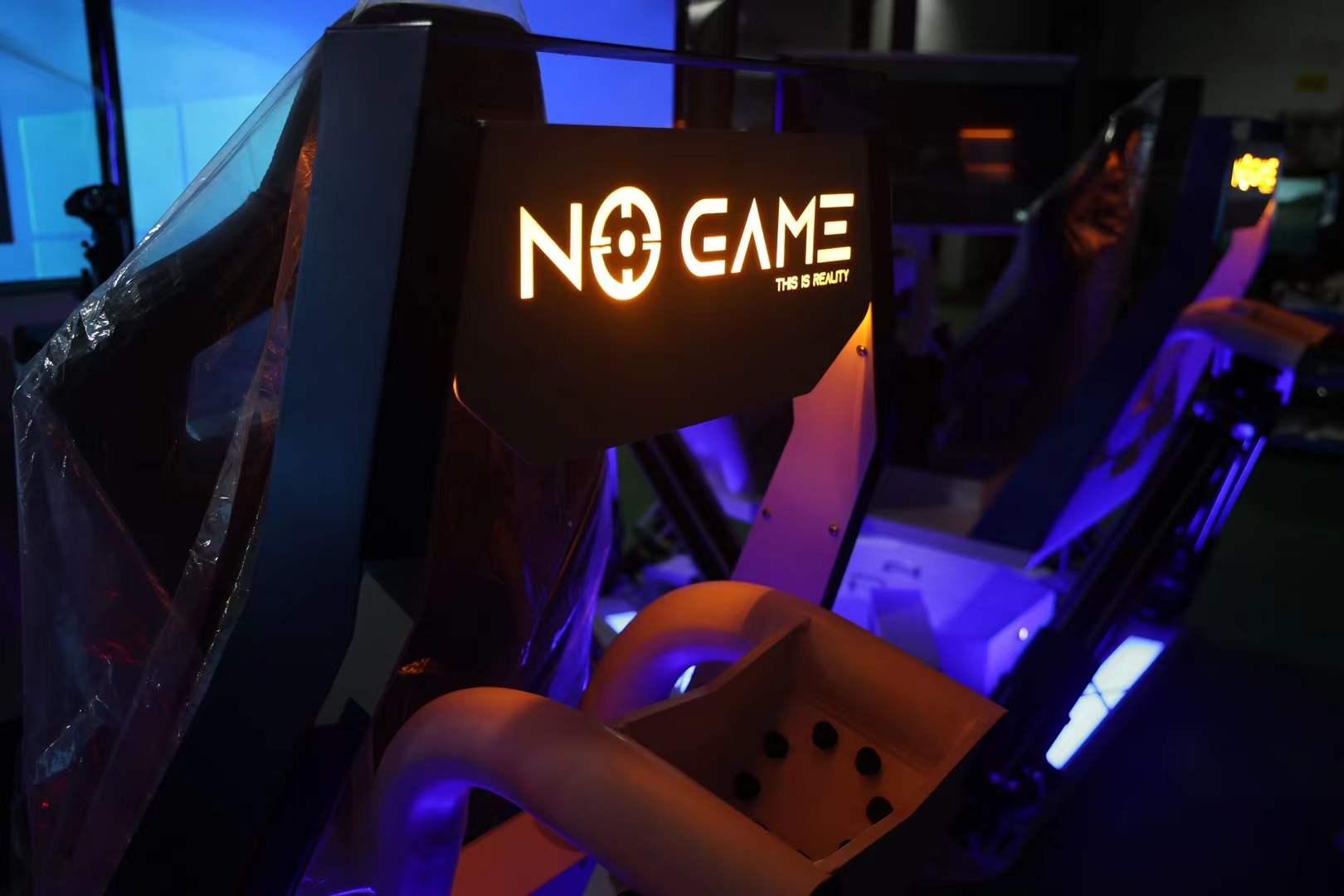

LED Strip Ambient Lighting
LED strip ambient lighting with an illuminated logo brings a more vibrant atmosphere to the venue.
Champion 6 DOF / engineering detail
DETAIL 12

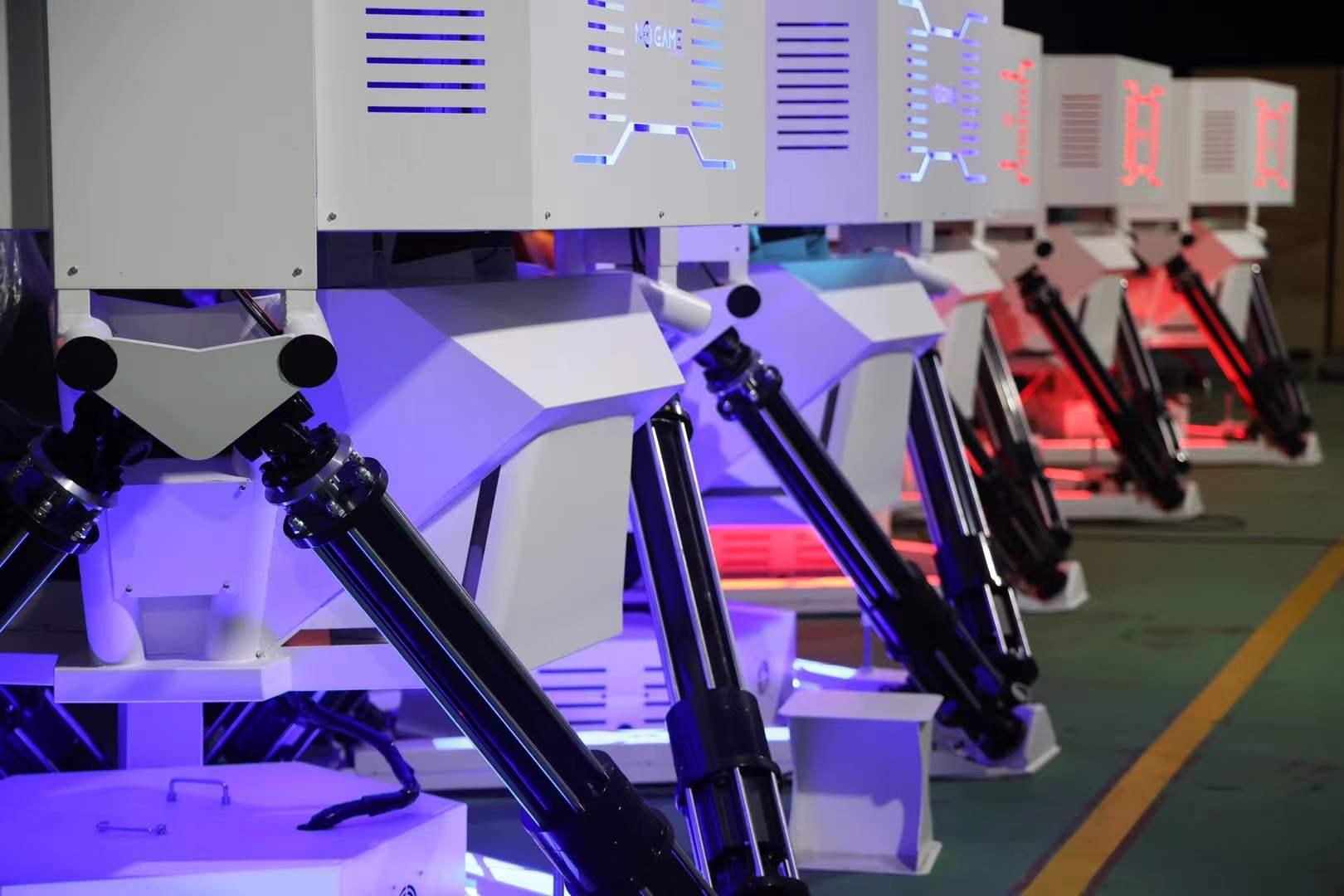

Advanced Painting
An automobile paint process creates a refined surface for a more beautiful, higher-quality finish.
Champion 6 DOF / engineering detail
Venue Operation and Connected Play
Game selection, broad compatibility, online competition and payment options support commercial operation.
DETAIL 13

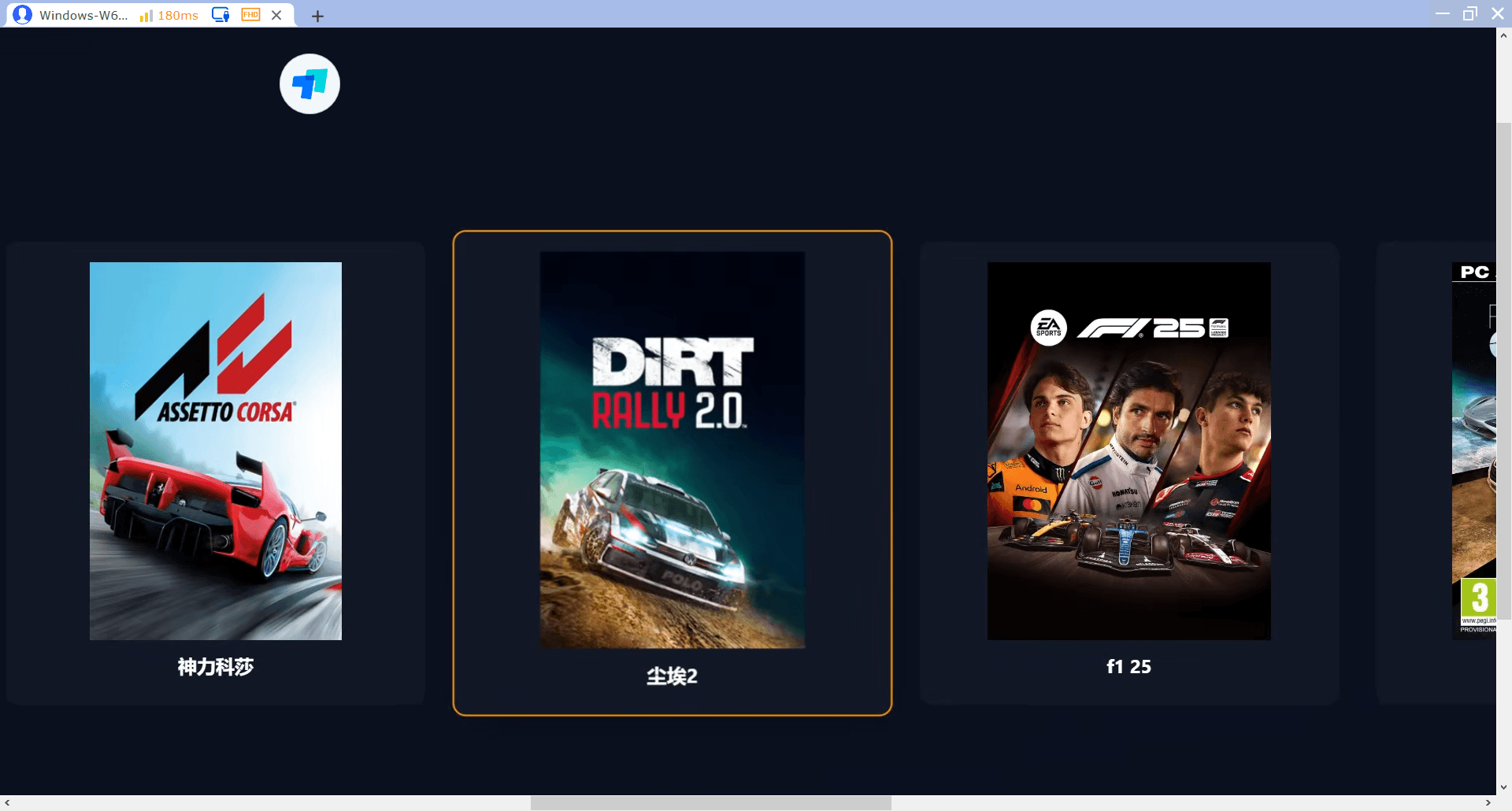

Operation-Friendly Interface
A simple, efficient operation interface lets players quickly select their preferred games.
Champion 6 DOF / engineering detail
DETAIL 14

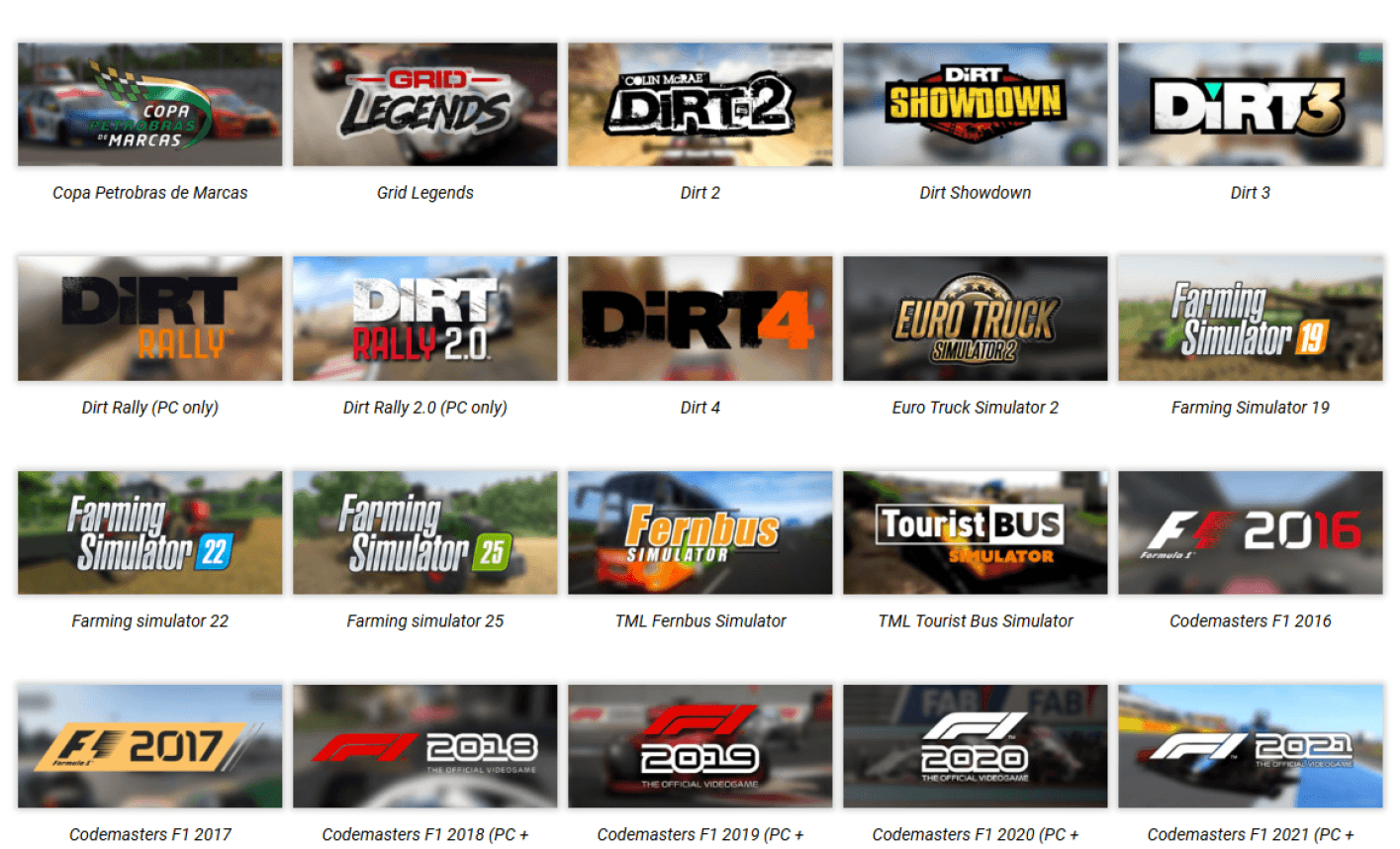

Extensive Game Selection with Industry-Leading Compatibility
Professional posture-sensing algorithms and tuning technology support more games, creating a fresh experience that can encourage repeat play.
Champion 6 DOF / engineering detail
DETAIL 15

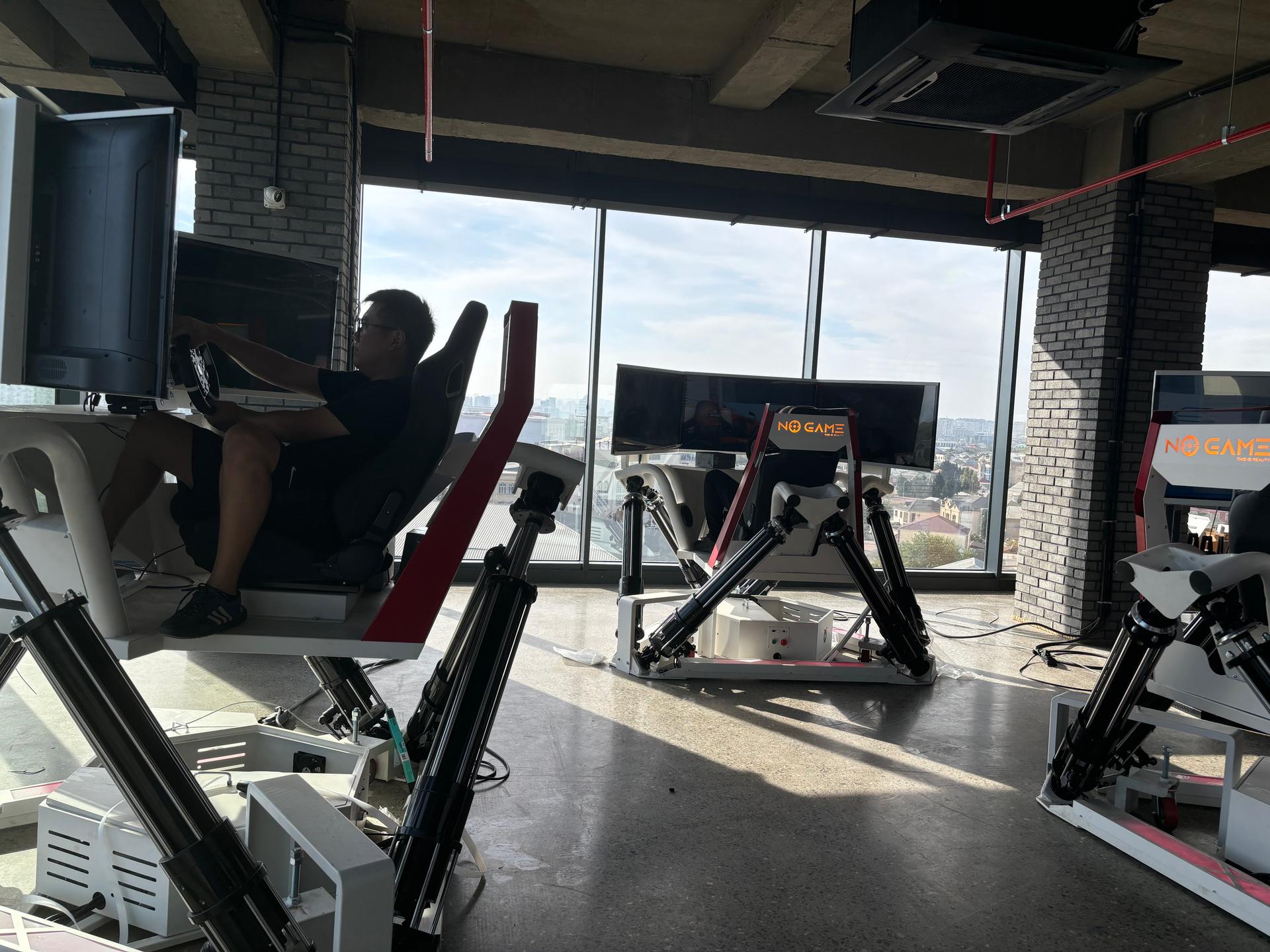

Online Competitions
Supports online competition for up to 8 units, helping create a more social racing experience and encourage repeat play.
Champion 6 DOF / engineering detail
DETAIL 16

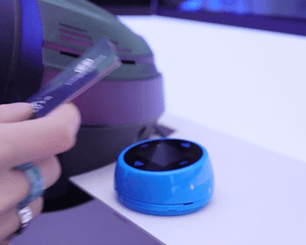

Convenient Business Management
Supports card and coin acceptors for more convenient commercial operation and management.
Champion 6 DOF / engineering detail
Configuration overview
Key components for a commercial setup
The following configuration is based on the Champion 6 DOF product material. Final options are confirmed with your quotation.

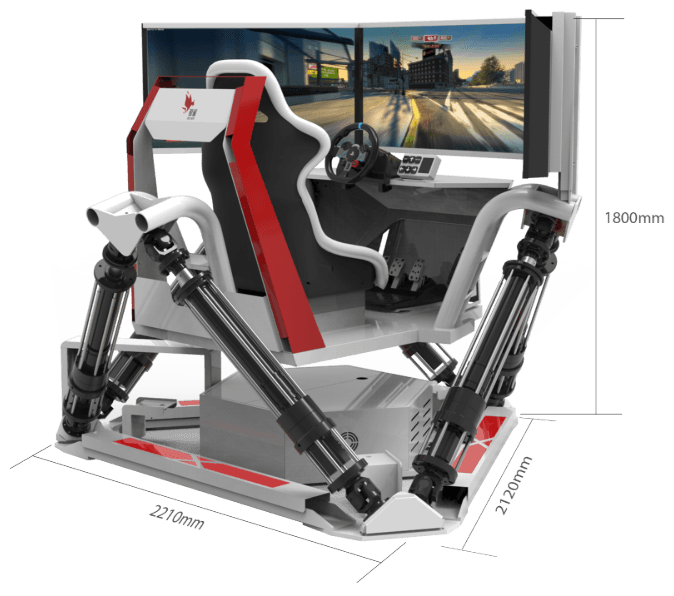

| Machine dimensions (L × W × H) | 2210 × 2120 × 1800 mm |
|---|---|
| Power requirement | 220 V / 4500 W |
| Movement | 6 DOF: surge, sway, heave, roll, pitch, yaw |
| Machine weight | 600 kg |
| Load capacity | 300 kg |
| Platform response time | ≤ 5 ms |
| Service life | ≥ 50,000 hours |
| Package volume | 12 m³ |
| Warranty | 1 year |
| Listed lead time | 20 days |
| Downloads | Supported Game List (PDF)Product Manual (PDF) |
| Motion system | 6 DOF electric-cylinder platform |
| Electric cylinder | 400 mm+ stroke, 1.2 kW power |
| Motor | Up to 1600 W |
| Steering wheel | MOZA R5 direct drive, 5.5 Nm |
| Pedal | MOZA SR-P Hall sensor pedal |
| Computer | i5 14600KF, 16 GB RAM, 512 GB HDD, 5060 Ti |
| Display | 3 × 43-inch 2K HD explosion-proof screens |
| Multiplayer | Up to 8 units online |
Compare motion formats
Is a 4-axis or 6 DOF format right for your venue?
Compare the current Champion configurations by motion platform, display, driving hardware and connected-racing capability before requesting a project quotation.
