What is a 5D / 7D cinema?

A 5D cinema combines stereoscopic 3D visuals with a multi-axis motion platform and synchronized environmental effects (wind, mist, scent, bubbles, snow, lightning). A 7D cinema adds two more 'D's — interactive shooting guns and real-time scoring — turning the audience into active players. Wehop builds both, often in the same room, so operators can run passive screenings during the day and interactive game shows during peak hours.

What's the difference between 5D and 7D?

5D = 3D film + motion platform + 4D environmental effects. 7D = 5D + interactive light-gun shooting + real-time leaderboard. The 7D mode lets up to 9 players compete simultaneously, with final rankings shown on the main screen — significantly higher repeat-visit rates than passive cinema.

How many seats can a 5D/7D cinema accommodate?

Wehop dynamic seats are sold in 2-seat and 3-seat modules. Compact rooms run 6–12 seats; standard installations are 24–60 seats; large theme-park installations exceed 100 seats. Seat upholstery, colour and styling are fully customizable.

How much space is required?

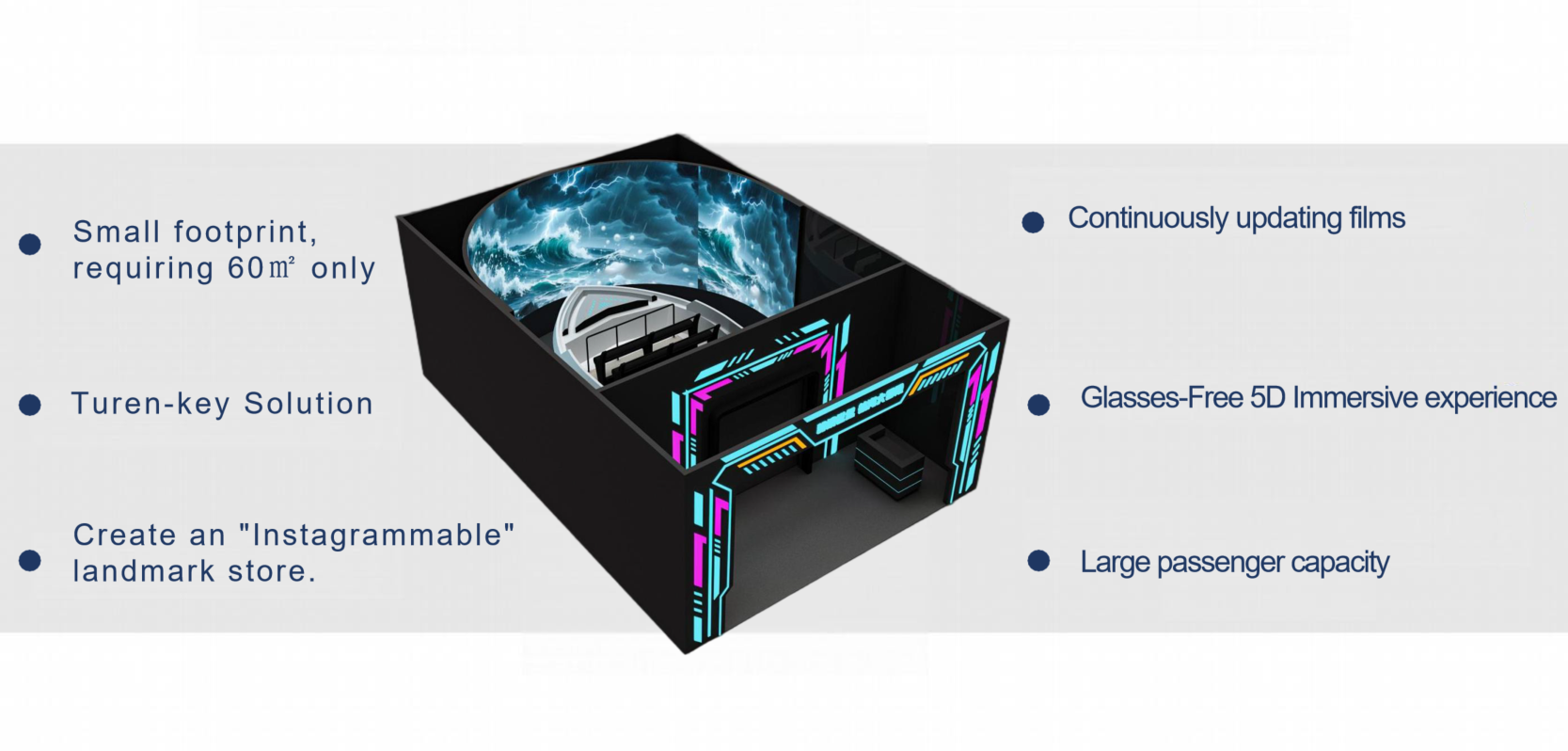

Our most popular layout requires approximately 14.5 m × 4.5 m (≈ 65 m²) of floor space plus a 5 m equipment/control room — supporting 5 rows of motion seats and a curved 150° projection screen. We provide professional CAD construction drawings tailored to your specific venue.

How many movies are included? Can I get new ones?

Our library includes 100+ ready-made 5D and 7D titles spanning action, adventure, horror, kids, sci-fi, space, ocean and disaster genres. We keep adding new films, and the library is included free of charge. Custom content production is also available for branded or location-specific stories.

What is the installation timeline?

Standard installations take 2–4 weeks on-site, including civil prep verification, equipment commissioning, motion platform calibration, audio tuning and operator training. Our engineering team travels worldwide to provide turnkey delivery.

What is the typical ROI for a 5D/7D cinema?

Operators commonly achieve payback within 8–18 months, depending on ticket pricing, foot-traffic and content rotation. A 30-seat installation running 10 shows per day at USD $8 per ticket generates ~ USD $720,000 / year in gross revenue.

What support do you provide after installation?

12-month warranty on all major hardware, lifetime remote technical support, free software updates, on-site engineer dispatch within 72 hours globally, and a continuously expanding film library at no additional cost.

5D / 7D Interactive Special Effects Dynamic Cinema

Interactive Special Effects Cinema

5D / 7D Interactive Dynamic Cinema

Name: 5D / 7D Interactive Dynamic Cinema
Brand: Wehop Technology
SKU: WH-5D7D-CINEMA
Availability: InStock

The Wehop 5D / 7D Cinema combines stereoscopic 3D film, multi-axis motion seating, more than ten kinds of environmental special effects, and an optional interactive light-gun shooting system into a single high-throughput attraction. Six themed room designs and a 100+ title film library let operators pivot content overnight.

CategoryDome Theater

SKUWH-5D7D-CINEMA

Tags5D Cinema, 7D Cinema, Motion Seats, Interactive Shooting

Contact Sales

What is a 5D / 7D Interactive Cinema?

A 5D cinema projects a stereoscopic 3D film onto a curved screen while motion seats sway, pitch and rise in perfect sync. Programmable wind, mist, snow, bubbles, scent, strobe and smoke effects fire on cue, surrounding every viewer with multisensory immersion.

A 7D cinema upgrades the experience with handheld light-gun shooting — every seat becomes a player cabin. Hit-rate and score are tracked in real time and final rankings appear on the main screen, turning each 8-minute show into a competitive game session.

Wehop has been manufacturing 4D / 5D / 7D dynamic cinemas since 2006. With 15,000 m² of production capacity, a 160-person engineering and content team, and 5,000+ global customers, we deliver turnkey installations to theme parks, family entertainment centres, science museums and tourism destinations worldwide.

6 Themed Cinema Designs

Choose a creative theme — or combine multiple in a single venue — for instant brand differentiation.

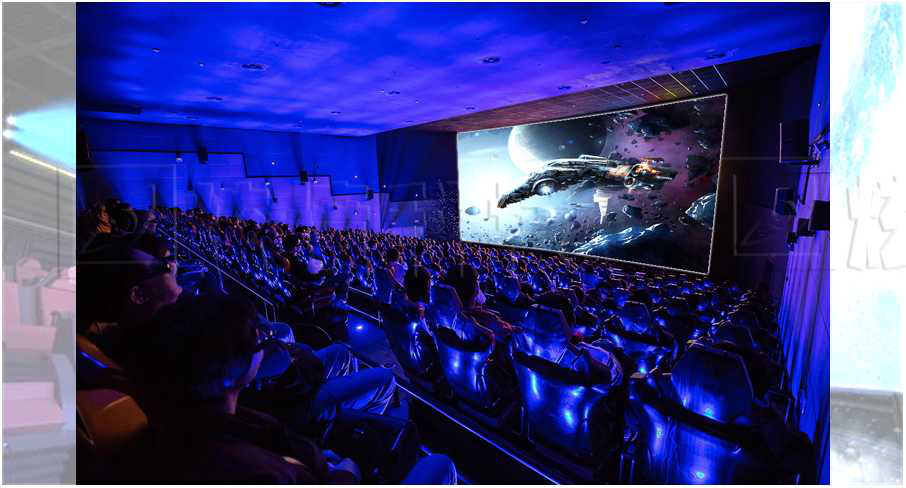

Technology Theme

A high-tech sensory scene crafted by our senior creative team — combining 5D motion, 7D interaction and stereo surround BGM for a fully immersive futuristic experience.

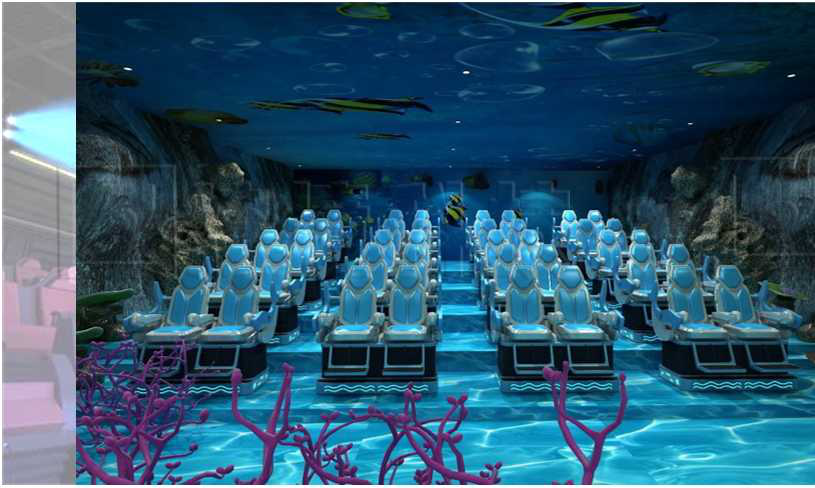

Ocean Theme

Through 5D+7D projection virtual imaging, the gorgeous ocean scene is presented — guests cross an undersea tunnel and discover the colourful secrets of the deep.

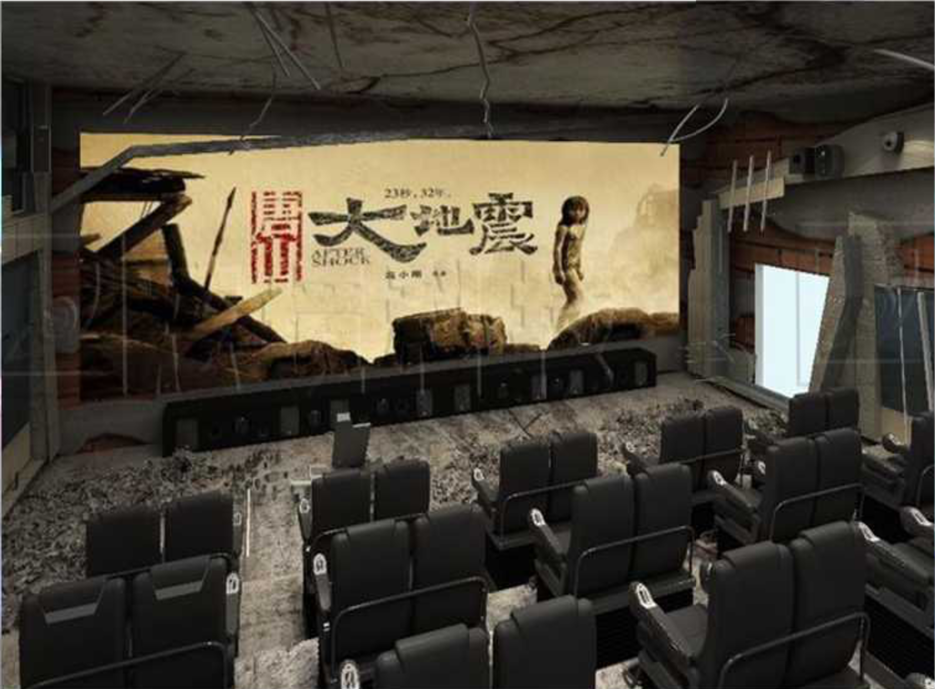

Earthquake Theme

5D motion platform plus three-dimensional visuals reproduce the power of a seismic event — popular for science museums and disaster-prevention education centres.

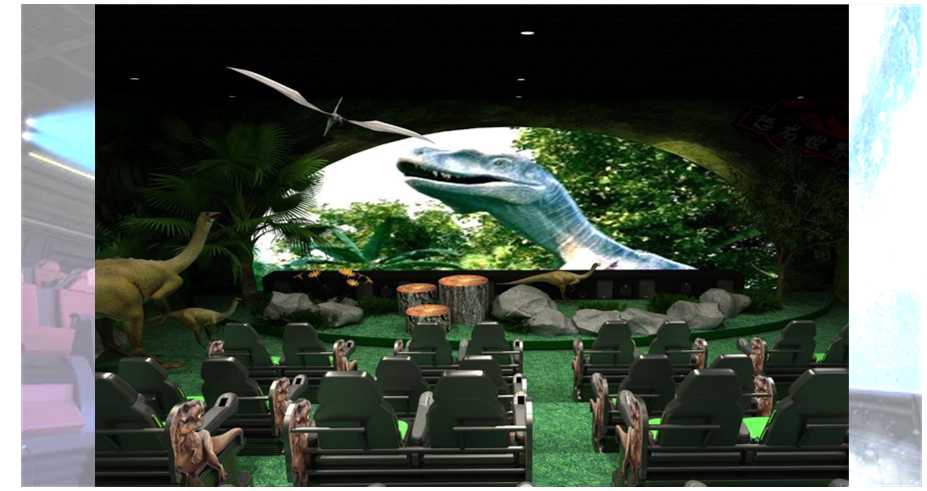

Dinosaur Theme

Travel through time to the Jurassic era inside a realistic wetland ecological park — mysterious, thrilling and irresistibly photogenic for family audiences.

Space Theme

Rich aviation elements create a dream space with a strong sense of science and technology — fly through asteroid fields and learn about aerospace development.

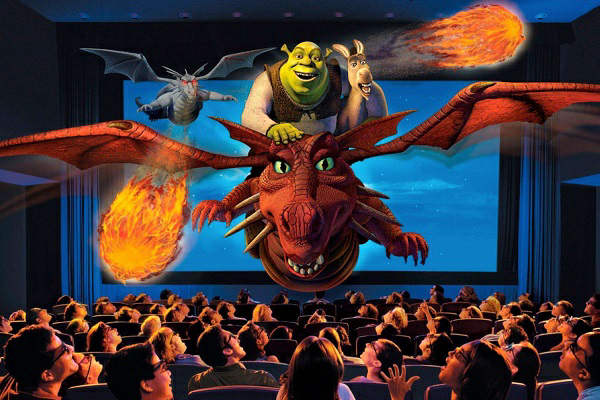

Dragon Theme

First-person flight across mountain valleys on the back of a dragon — a fantasy showcase that drives social-media sharing and repeat ticket sales.

Hardware Composition — 16 Subsystems

Every Wehop 5D / 7D cinema ships with these integrated subsystems, factory-tested and pre-wired to a single show-control timeline.

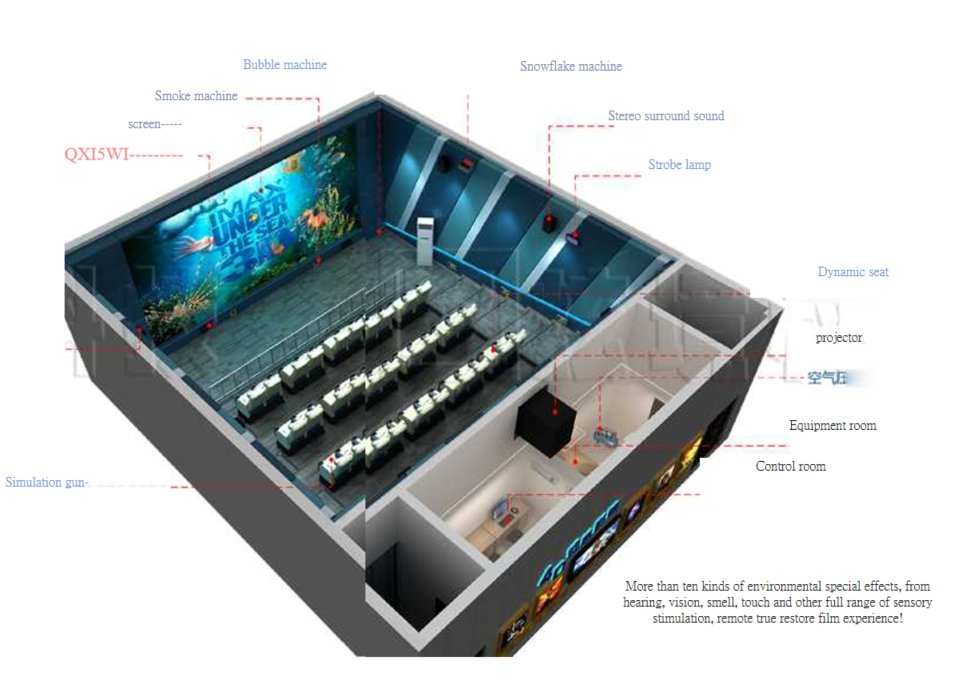

5D / 7D Cinema hardware composition diagram

01Laser Projector
02Subwoofer
03Front Speaker
04Projection Screen
05Snowflake Machine
06Wind Blower
07Bubble Machine
08Smoke Machine
09Dynamic Motion Seat
10Acoustic Environment
11Rear Speaker
12Fog Machine
13Main Control System
14Rain Shower Gear
15Center Channel Speaker
16Strobe / Lightning Lamp

2 Motion Platform Technologies

We offer two motion-platform engineering options — pick the one that fits your operating-life and noise requirements.

3-DOF Electric Cylinder

Power1.5 kW

Movement3 DOF

Range150 mm

Speed250 mm/s

Warranty1 year

MaintenancePeriodic — linear actuator may stick, lead screw and synchronous belt wear with time

Recommended

3-DOF Crankshaft Motion

Power1.5 kW

Movement3 DOF

Range150 mm

Speed300 mm/s

Warranty2 years

MaintenanceMaintenance-free; low noise; field-proven lifespan of 10+ years

Why Crankshaft

Crankshaft Dual-Base Structure — Technical Advantages

Wehop's self-developed crankshaft dual-base motion platform replaces the consumable lead-screw electric cylinders used by most competitors. The result is a quieter, lower-profile, longer-living platform with faster acceleration and almost zero ongoing maintenance.

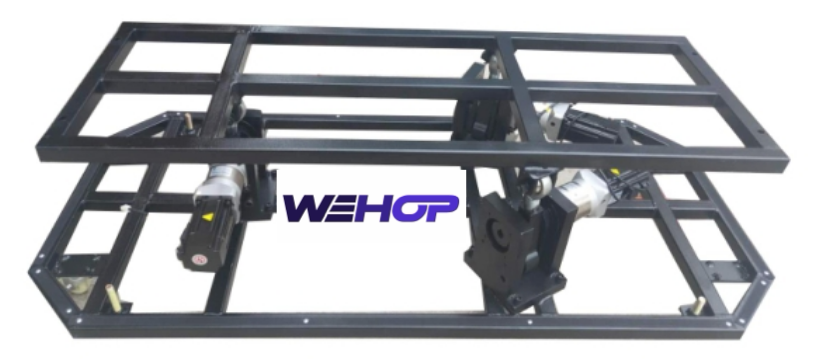

Wehop crankshaft dual-base motion platform structure

Attribute	Other Mfg. Electric Cylinder	Wehop Crankshaft Dual-Base
Noise	80 dB	20 dB
Lifespan	Short — lead-screw wears out	Long — rigid full-body structure
System Height	Above 500 mm (tall profile)	Under 300 mm (low profile)
Wear Parts	Drive belt is consumable	All rigid components, zero wear parts
Main Material	Aluminum alloy	Medium-carbon steel
Lift Stroke	0 – 200 mm	0 – 200 mm
Maintenance Cost	Consumables required, high cost	No consumables, low cost
Top Speed	0 – 250 mm/s	0 – 400 mm/s

Measured Motion Performance

Calculated on a 1.2 m × 1.2 m platform with 600 × 600 mm isosceles-triangle pivots, 200 mm stroke and 80:1 reduction ratio.

Motion	Range	Speed	Acceleration
Pitch	18°	28°/s	80°/s²
Roll	18°	28°/s	80°/s²
Heave (Lift)	200 mm	250 mm/s	6 m/s²

Multi-Sensory Environmental Effects

More than ten kinds of programmable special effects fire on the show-control timeline — frame-accurate immersion.

Snow

Snowflake machine flies artificial snow flakes overhead, transforming the auditorium into a silver-makeup winter world.

Bubbles

Bubble machine fills the cinema with floating bubbles during undersea sequences — divers, fish and aquatic plants come alive.

Strobe Lightning

High-intensity strobe replicates lightning flashes synced to thunder cues — the audience feels surrounded by a thunderstorm.

Wind

Fan modules simulate the wind direction and intensity of every scene — from gentle breeze to typhoon-force gusts.

Rain Spray

Programmable sprinkler heads release rain droplets at film-timed cues, so guests literally feel the rain falling from the sky.

Smoke / Fog

Smoke generator simulates fire smoke and cloud curling — white clouds drift among the audience for cinematic atmosphere.

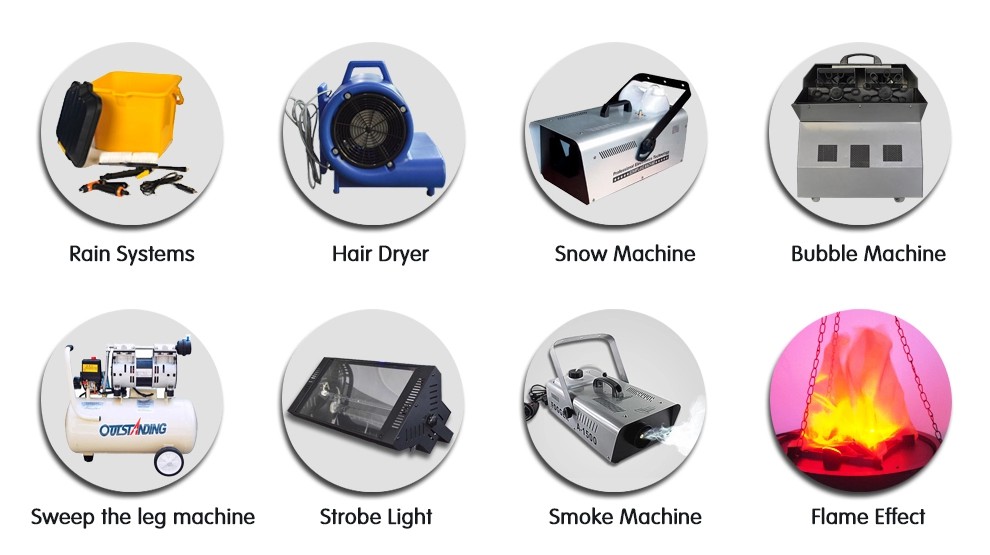

Wehop 5D cinema special-effects equipment: rain, wind, snow, bubble, leg-tickle, strobe, smoke, flame

Stereo Vision System

Cinema-grade Epson 3LCD laser projection paired with a custom-tensioned aviation-aluminum framed screen.

Projector

Brand	Epson 3LCD laser projector
Standard Resolution	1920 × 1200
Contrast Ratio	30,000 : 1
Light Source	Mirror laser
Keystone Correction	Automatic
Projection Picture	80 – 300 inch

Screen

Tensile Strength	120 kg/cm² max, 100 kg/cm² avg
Tear Strength	65 kg/mm max, 50 kg/mm avg
Heat Shrinkage	≤ 5%
Thickness	0.32 mm
Contrast	1400 : 1
Gain Ratio	1.2
Horizontal Perspective	160°
Frame	Aviation-grade aluminum, black flocked surface
Properties	Fire retardant, mildew & moisture resistant, eco-grade materials

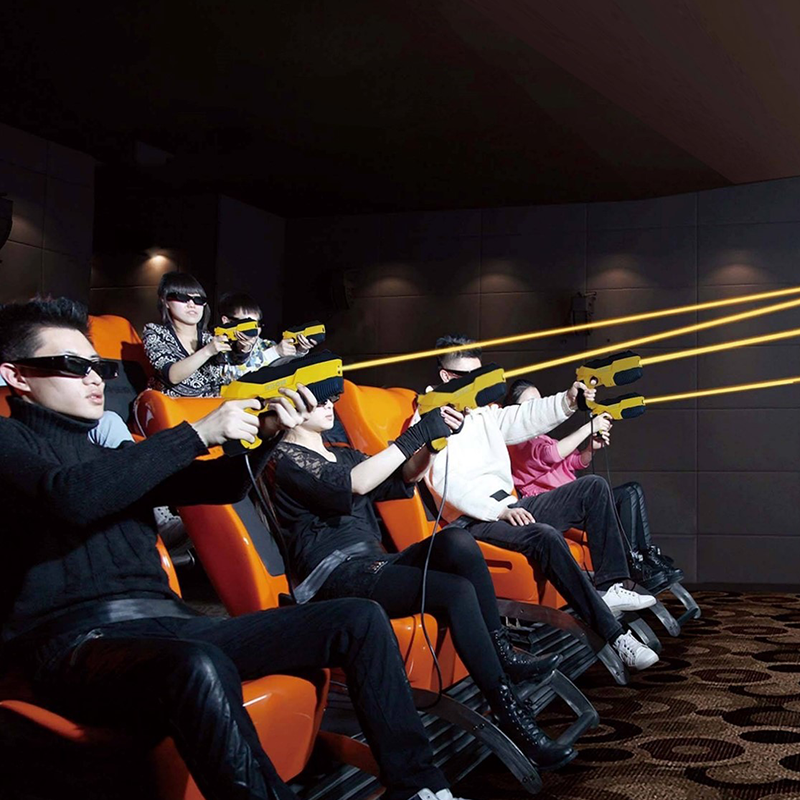

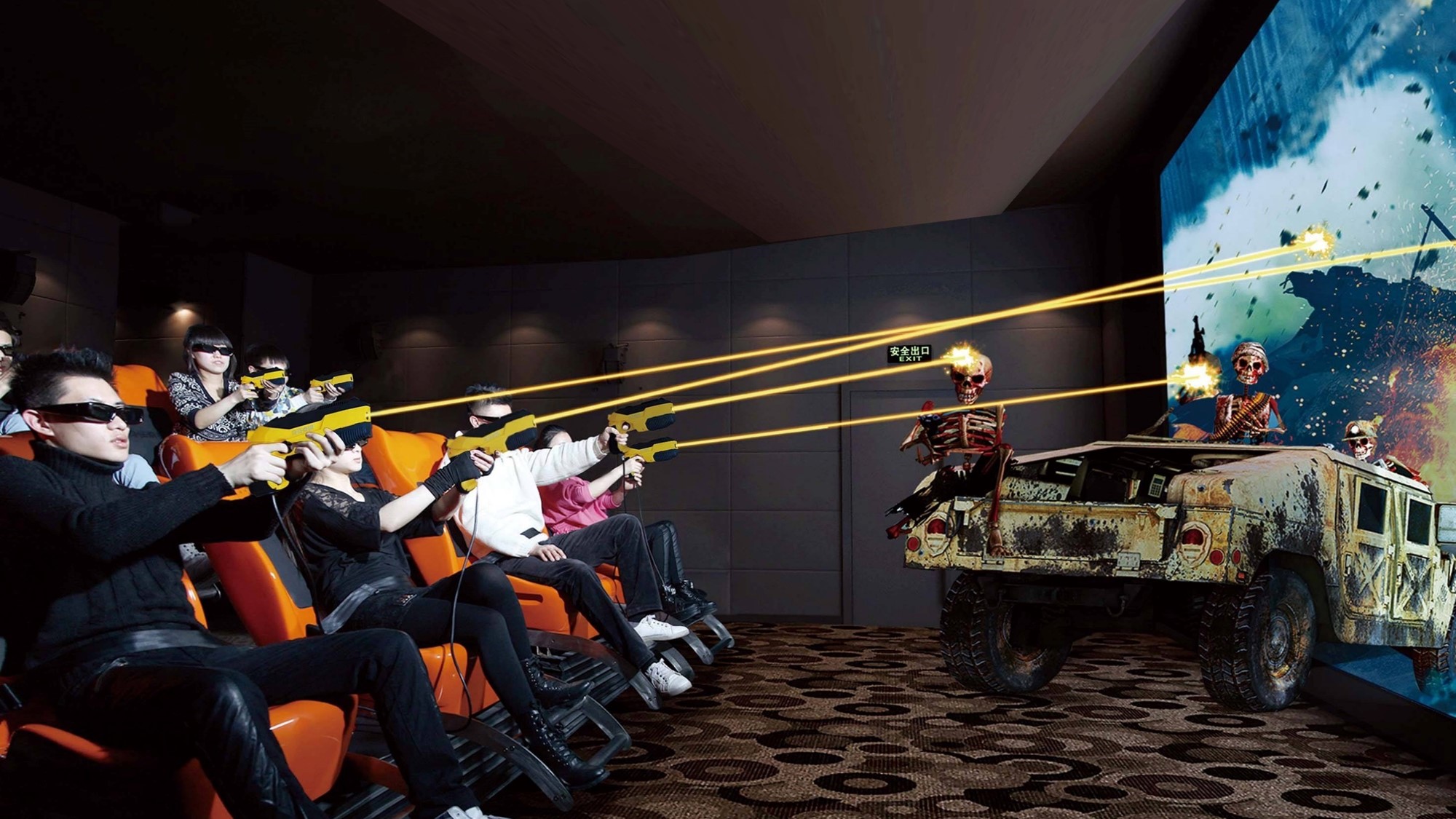

7D Interactive Shooting System

Each motion seat is equipped with a handheld infrared light gun. Players aim and fire at targets on the main screen — continuous fire is supported and hit detection is processed in real time.

Every hit scores points; the live leaderboard updates on a secondary HUD during the show, and when the film ends the final ranking of up to 9 players is displayed dramatically on the main screen — driving the social-media moment and repeat ticket sales.

Operators can run the same room as a passive 5D screening during off-peak hours and as a competitive 7D game show during peaks — doubling utilization per square meter.

Up to 9 players

Simultaneous interactive shooting with real-time ranking.

Hit detectionInfrared

Fire modeContinuous

Final rankingOn main screen

100+ Title Film Library

Adventure, sci-fi, horror, family, ocean, dinosaur, space and disaster genres — new titles added regularly at no extra cost.
